Arm, Lower Control: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

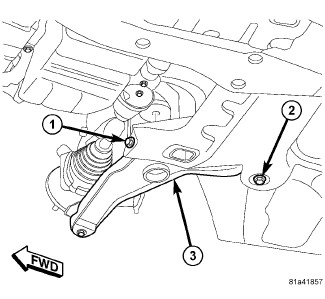

Fig 1: Identifying Lower Control Arm Mounting Nuts
GC0120773Courtesy of CHRYSLER GROUP, LLC
  1. Place the lower control arm (3) into the front suspension crossmember.
  2. Insert the rear bolt (2) up through the crossmember and lower control arm (3). Install the nut on the top-end of the bolt, but do not tighten it at this time.
  3. Install, but do not fully tighten, the front bolt (1) attaching the lower control arm (3) to the crossmember.
  4. With no weight or obstruction on the lower control arm, tighten the lower control arm front  mounting bolt (1) to 175 N.m (129 ft. lbs.).
  5. With no weight or obstruction on the lower control arm, tighten the lower control arm rear  mounting bolt nut to 145 N.m (107 ft. lbs.).

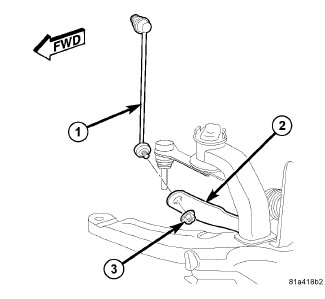

    Fig 2: View Of Stabilizer Link Mounting To Bar
    GC0120772Courtesy of CHRYSLER GROUP, LLC
  6. Attach the stabilizer bar link (1) at each end of the stabilizer bar (2). At each link, install and tighten the nut (3) while holding the stabilizer bar link lower stud stationary. Tighten the nuts to 48 N.m (35 ft. lbs.).
    NOTE:

    If a new or cleaned lower control arm is being installed, it is important to have a film of general purpose grease around the ball joint mounting hole on the lower control arm to avoid any future corrosion issues. Make sure the grease does not get inside the ball joint mounting hole or on the ball joint stud during installation.

    Fig 3: View Of Front Knuckle Mounting
    GC0120770Courtesy of CHRYSLER GROUP, LLC
  7. Insert the lower ball joint stud into the mounting hole in the lower control arm (5).
  8. Install a NEW ball joint stud nut (4). Tighten the nut to 95 N.m (70 ft. lbs.).
    Fig 4: Tire & Wheel Mounting
    GC0082325Courtesy of CHRYSLER GROUP, LLC
  9. Install the tire and wheel assembly (1). Refer to INSTALLATION . Install and tighten the wheel mounting nuts (3) to 135 N.m (100 ft. lbs.).
  10. Lower the vehicle.
  11. Perform wheel alignment as necessary. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
