Fascia, Front Lower, Closeout: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

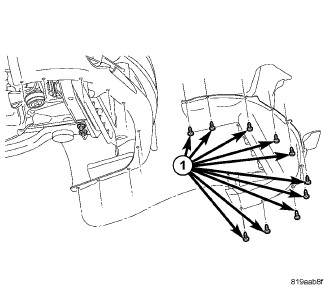

Fig 1: Lower Closeout Push Pins
GC0121726Courtesy of CHRYSLER GROUP, LLC
  1. Install the front lower fascia.
  2. Install the push pins (1) to lower closeout.

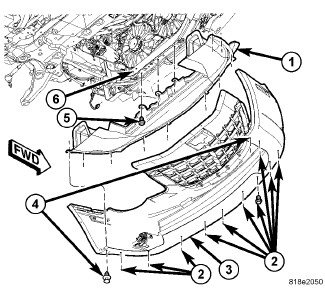

    Fig 2: Lower Fascia
    GC0121548Courtesy of CHRYSLER GROUP, LLC
  3. Install the fasteners (5) to lower closeout.
