Shifter, Transmission: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Center Console

Courtesy of CHRYSLER GROUP, LLC

Disconnect battery negative cable.
Remove the center console. Refer to CONSOLE, CENTER, REMOVAL .

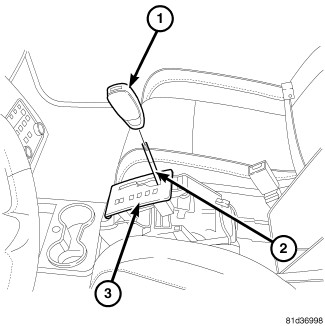

Fig 2: Shift Knob
Courtesy of CHRYSLER GROUP, LLC
Disconnect harness connector (1).
Remove the shift knob by pulling up on the knob.

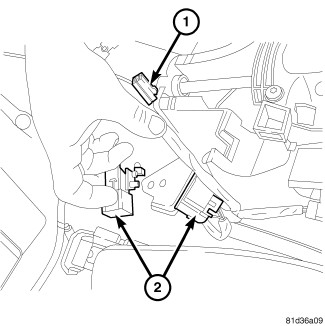

Fig 3: Electrical Connectors
Courtesy of CHRYSLER GROUP, LLC
Remove the electrical connectors (1, 2) at the shifter.

Fig 4: Identifying Shift Cable At Shifter
Courtesy of CHRYSLER GROUP, LLC
Disconnect and remove gearshift cable (2, 3) from shift mechanism.

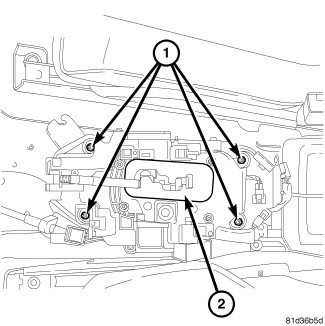

Fig 5: Shift Mechanism-To-Lower Console Nuts
Courtesy of CHRYSLER GROUP, LLC
Remove four shift mechanism-to-lower console nuts (1). Remove shift mechanism (2).
