Sensor, Pressure Control: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

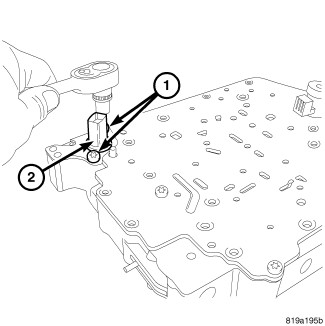

Fig 1: Identifying Bolts At Line Pressure Sensor
GC0122778Courtesy of CHRYSLER GROUP, LLC
  1. Install the line pressure sensor on to the valve body.
  2. Install the bolts (1) to the line pressure sensor and tighten to 6 N.m (50 in. lbs.).
    Fig 2: Identifying Valve Body Oil Pan & Bolts
    GC0122509Courtesy of CHRYSLER GROUP, LLC
  3. Install the valve body oil pan, use a bead of Mopar® ATF RTV (MS-GF41).
  4. Install the upper valve body oil pan bolts and tighten to 6 N.m (50 in. lbs.).
  5. Install the pressure tap at valve body oil pan and tighten to 6 N.m (50 in. lbs.).
  6. Lower the vehicle on a hoist.
    Fig 3: Solenoid Connector At Transmission
    GC0122501Courtesy of CHRYSLER GROUP, LLC
  7. Install the solenoid pack connector (2) at valve body oil pan.
  8. Raise the vehicle on the hoist.
    Fig 4: Identifying Valve Body Oil Pan & Bolts
    GC0122509Courtesy of CHRYSLER GROUP, LLC
  9. Install the lower valve body oil pan bolts and tighten to 6 N.m (50 in. lbs.).

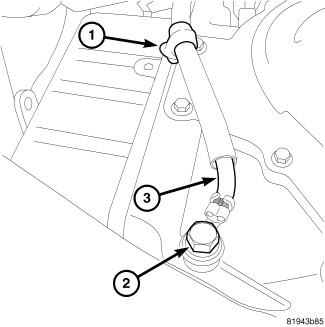

    Fig 5: Identifying Ground Cable, Bolt & Tie Strap
    GC0122777Courtesy of CHRYSLER GROUP, LLC
  10. Install the bolt at the ground cable and tighten to 10 N.m (90 in. lbs.).
  11. Install the clip to the valve body oil pan
    Fig 6: Front Sound Dampener Cover & Fasteners
    GC0122507Courtesy of CHRYSLER GROUP, LLC
  12. Install the Front Sound Damper Cover (2) and install the fasteners (1).

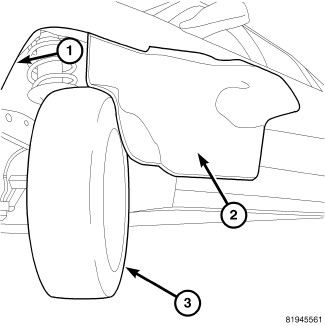

    Fig 7: Identifying Wheel, Opening & Splash Shield
    GC0122776Courtesy of CHRYSLER GROUP, LLC
  13. Move left side inner wheel splash shield (2) into place.
  14. Install the left side inner wheel splash shield screws (1).
  15. Lower the vehicle.

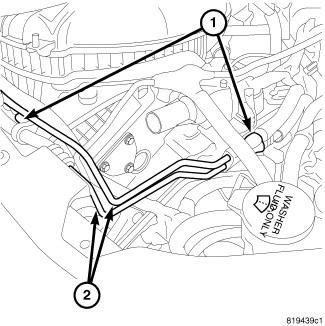

    Fig 8: Identifying Power Steering Lines & Bolts
    GC0122775Courtesy of CHRYSLER GROUP, LLC
  16. Install the bolts (1) holding the power steering lines (2) and tighten to 10 N.m (90 in. lbs.).
    Fig 9: Identifying Shift Cable & Manual Valve Lever
    GC0121541Courtesy of CHRYSLER GROUP, LLC
  17. Install shift cable (1) to manual lever (2).

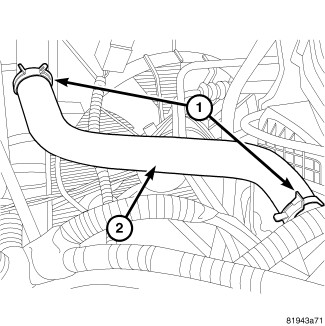

    Fig 10: Identifying Upper Radiator Hose & Clamps
    GC0122774Courtesy of CHRYSLER GROUP, LLC
  18. Install upper radiator hose (2) and clamps (1).
  19. Fill the cooling system. Refer to STANDARD PROCEDURE .

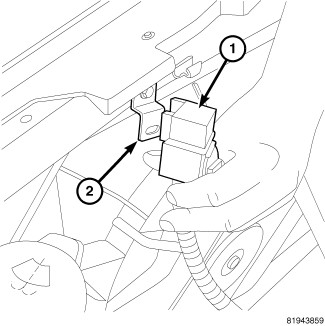

    Fig 11: Identifying Relay At Core Support
    GC0122773Courtesy of CHRYSLER GROUP, LLC
  20. Install the relay (1) at the core support.
  21. Install the battery and battery tray. Refer to BATTERY, INSTALLATION .
  22. Install the battery cables.
  23. Fill transmission and road test. Refer to FLUID, STANDARD PROCEDURE .
