Seal, Differential: Installation: Left
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the axle shaft seal bores.

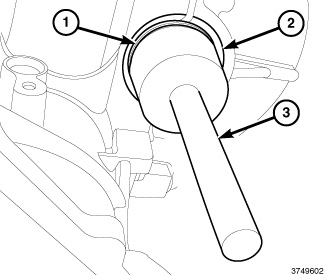

- Install the seal (1) using (special tool #C-3995-A, Installer, Seal) (2), and (special tool #C-4171, Driver Handle, Universal) (3).
- Tap the seal into position until firmly seated against the transaxle case.
- Install the axle shaft. Refer to INSTALLATION for front or INSTALLATION for rear.
- Check transaxle fluid level and adjust as necessary. Refer to the appropriate fluid level and check procedure within this Service Information.
