Schematics And Diagrams

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

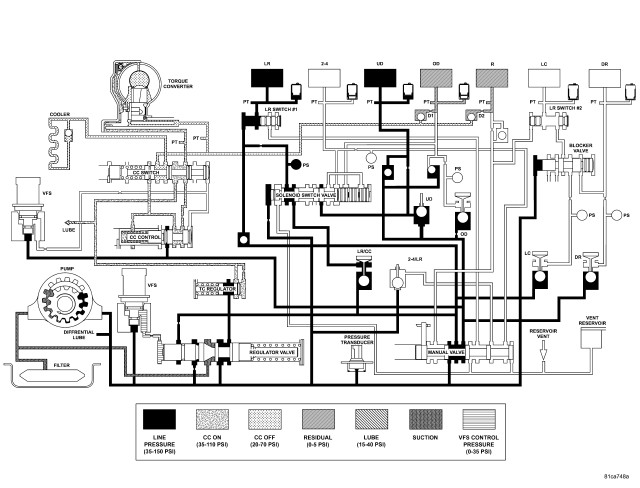

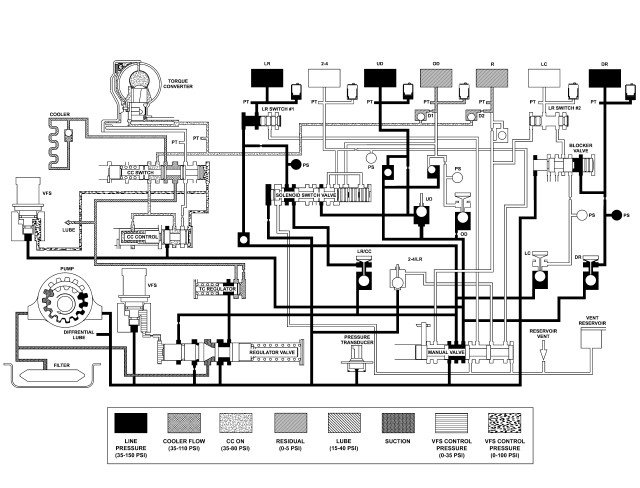

Fig 1: Drive First

Courtesy of CHRYSLER GROUP, LLC

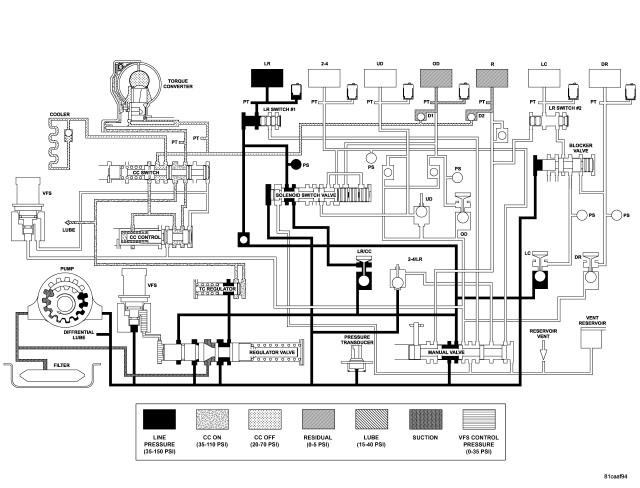

Fig 2: Drive First Coast

Courtesy of CHRYSLER GROUP, LLC

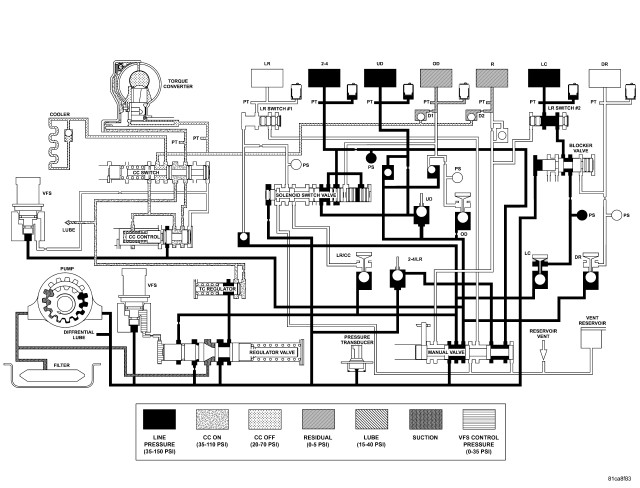

Fig 3: Drive First EMCC

Courtesy of CHRYSLER GROUP, LLC

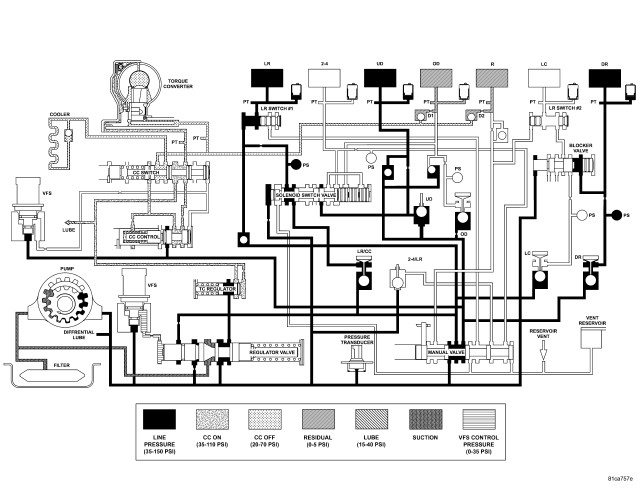

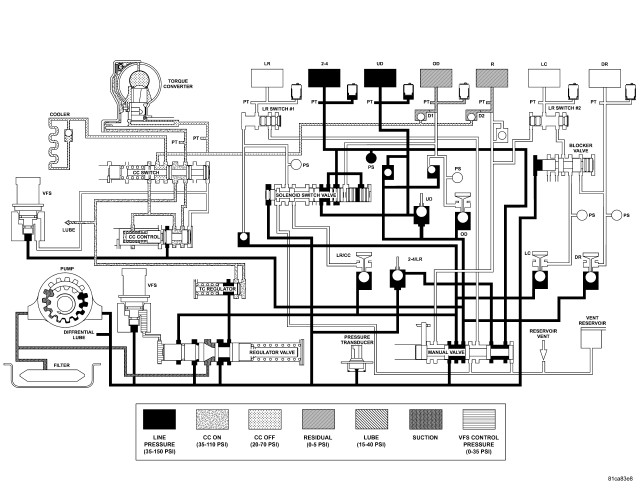

Fig 4: Drive Second

Courtesy of CHRYSLER GROUP, LLC

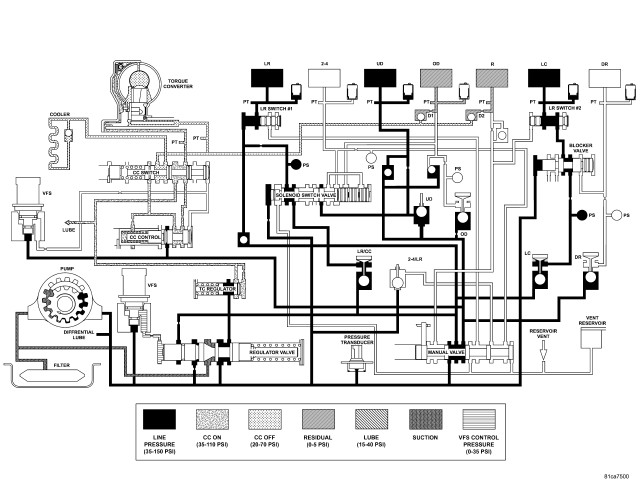

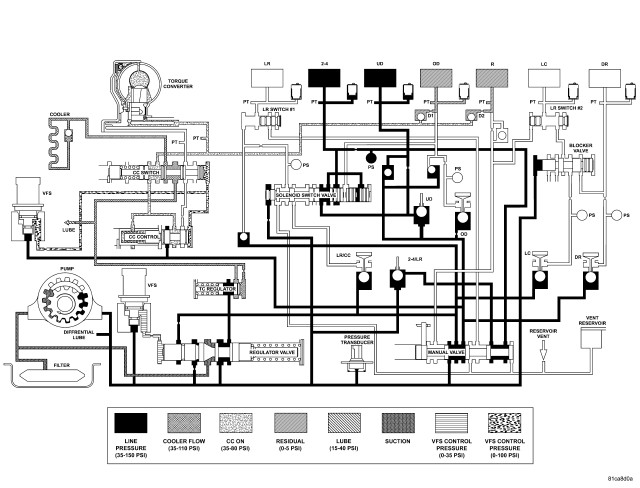

Fig 5: Drive Second EMCC

Courtesy of CHRYSLER GROUP, LLC

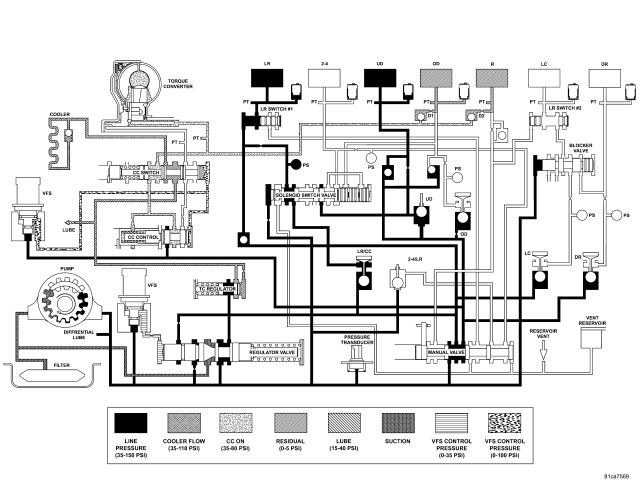

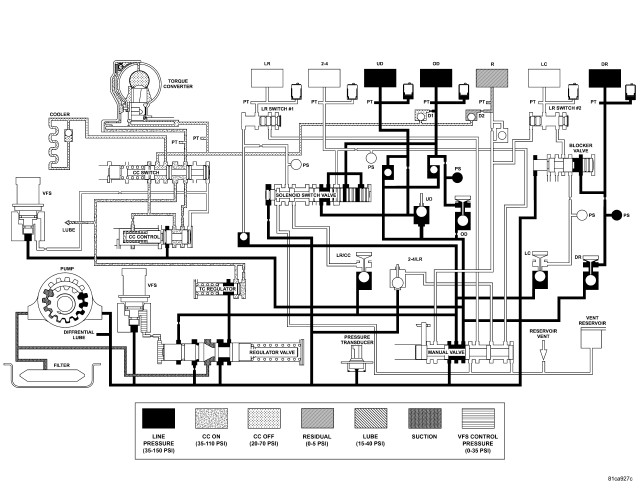

Fig 6: Drive Third

Courtesy of CHRYSLER GROUP, LLC

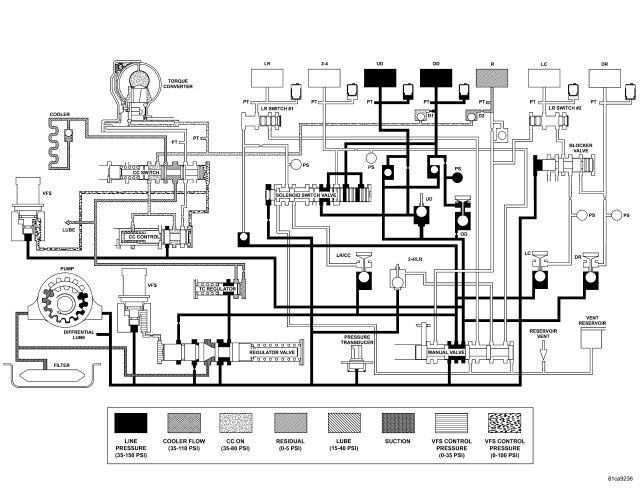

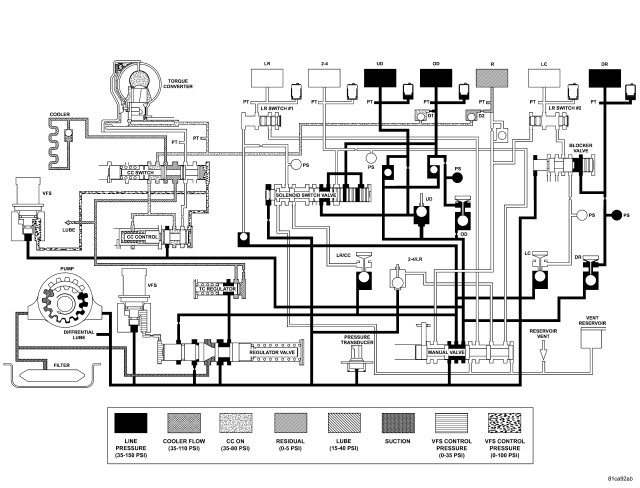

Fig 7: Drive Third EMCC

Courtesy of CHRYSLER GROUP, LLC

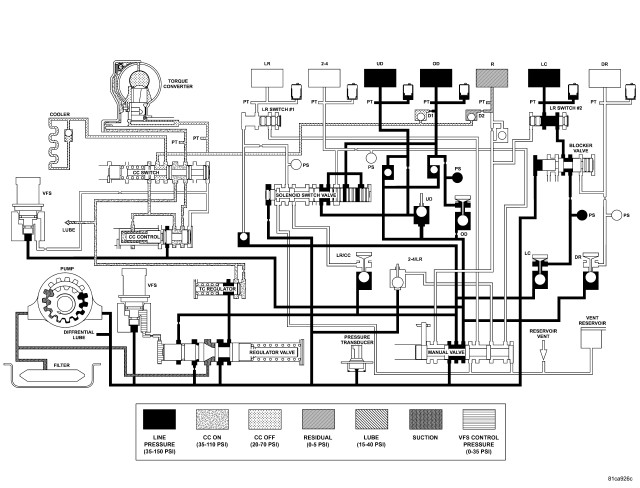

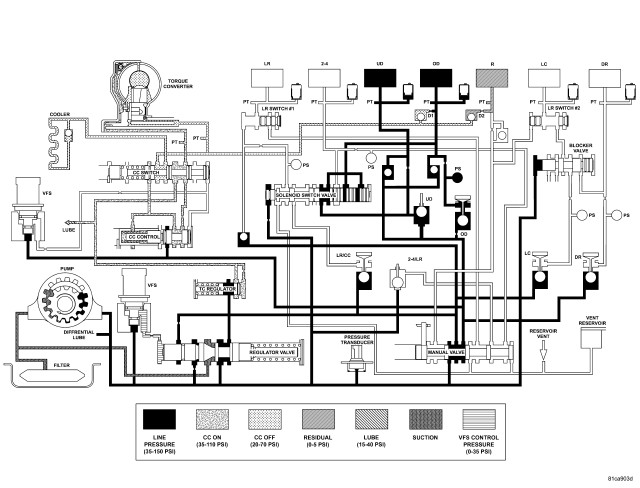

Fig 8: Drive Third Coast

Courtesy of CHRYSLER GROUP, LLC

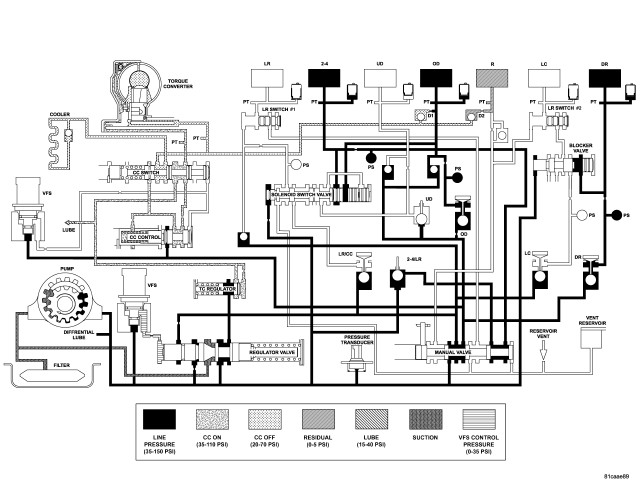

Fig 9: Drive Fourth

Courtesy of CHRYSLER GROUP, LLC

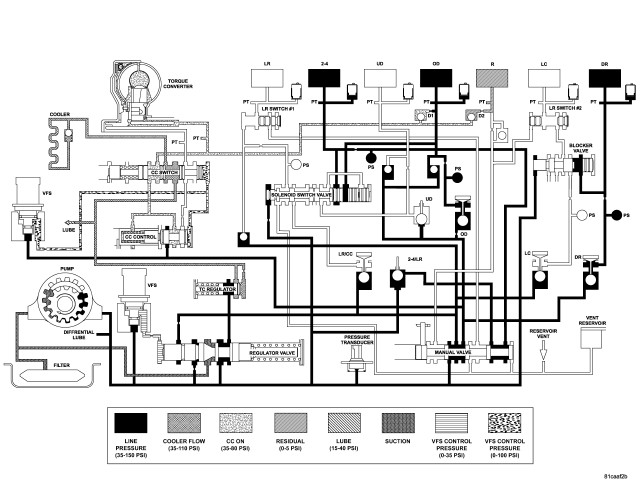

Fig 10: Drive Fourth EMCC

Courtesy of CHRYSLER GROUP, LLC

Fig 11: Fourth Coast

Courtesy of CHRYSLER GROUP, LLC

Fig 12: Drive Fifth

Courtesy of CHRYSLER GROUP, LLC

Fig 13: Drive Fifth EMCC

Courtesy of CHRYSLER GROUP, LLC

Fig 14: Drive Sixth

Courtesy of CHRYSLER GROUP, LLC

Fig 15: Drive Sixth EMCC

Courtesy of CHRYSLER GROUP, LLC

Fig 16: Park Neutral

Courtesy of CHRYSLER GROUP, LLC

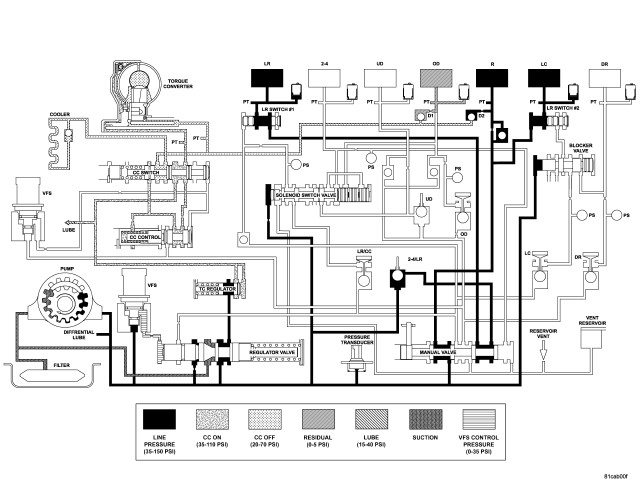

Fig 17: Reverse

Courtesy of CHRYSLER GROUP, LLC
