Valve Body: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

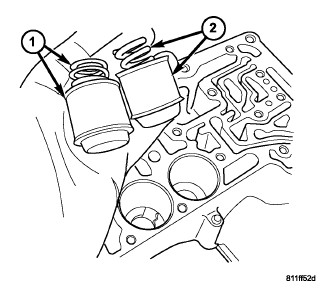

Fig 1: Identifying Underdrive & Overdrive Pistons & Springs

Courtesy of CHRYSLER GROUP, LLC

1 - OVERDRIVE PISTON AND SPRING

2 - UNDERDRIVE PISTON AND SPRING

NOTE:

If valve body assembly is being replaced or reconditioned, it is necessary to perform the PCM Quick Learn Procedure (Refer to MODULE, POWERTRAIN CONTROL, STANDARD PROCEDURE ).

Install underdrive (2) and overdrive (1) accumulators.

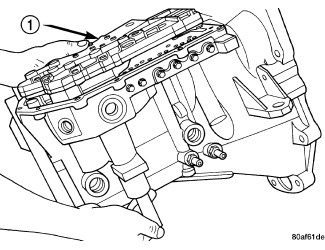

Fig 2: Valve Body Removal/Installation
Courtesy of CHRYSLER GROUP, LLC

1 - VALVE BODY

CAUTION:
When installing the valve body, be sure the VLP solenoid and sensor harness does not become pinched between the valve body and the case.
Install valve body assembly (1) to transaxle.

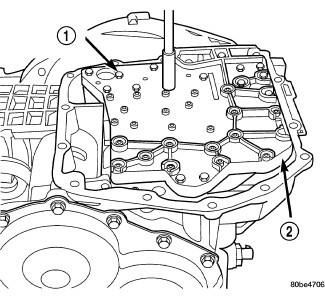

Fig 3: Valve Body-To-Case Bolts
Courtesy of CHRYSLER GROUP, LLC

1 - VALVE BODY ATTACHING BOLTS (18)

2 - VALVE BODY
Install and tighten valve body-to-transaxle case bolts.

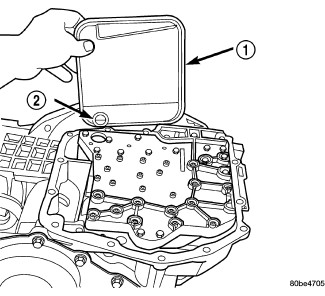

Fig 4: Install Oil Filter And O-Ring
Courtesy of CHRYSLER GROUP, LLC

1 - OIL FILTER

2 - O-RING

Install transaxle oil filter (1). Inspect the O-ring (2) and replace if necessary.

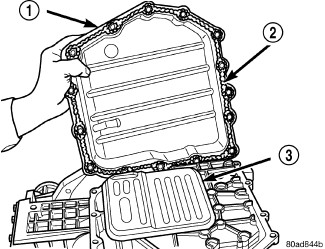

Fig 5: Oil Pan

Courtesy of CHRYSLER GROUP, LLC

1 - OIL PAN

2 - 1/8 INCH BEAD OF MOPAR ATF RTV (MS-GF41)

3 - OIL FILTER

Ensure the transaxle oil pan and transaxle case sealing surfaces are clean and dry. Install a 1/8" bead of Mopar® ATF RTV (MS-GF41) to the oil pan and install.

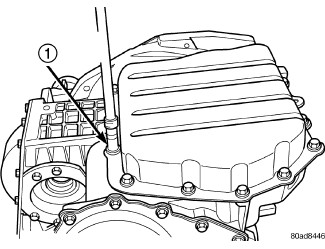

Fig 6: Oil Pan Bolts
Courtesy of CHRYSLER GROUP, LLC

1 - OIL PAN BOLTS (USE RTV UNDER BOLT HEADS)
Torque oil pan-to-transaxle case bolts to 19 N.m (165 in. lbs.).
Lower vehicle.
Connect transmission range sensor connector.
Install manual valve lever to manual shaft.
Install gearshift cable to manual valve lever.
Connect battery negative cable.
Fill transaxle with Mopar® ATF +4 Transmission fluid. Refer to FLUID, STANDARD PROCEDURE .
