Cable, Shift: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

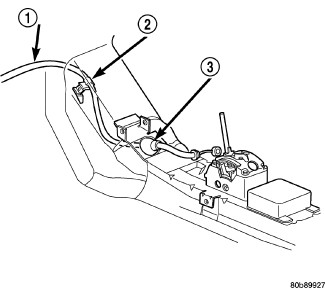

Fig 1: Gearshift Cable Routing

Courtesy of CHRYSLER GROUP, LLC

1 - CABLE

2 - RETAINER CLIP

3 - GROMMET

Install cable assembly into floor pan tunnel hole and secure grommet (3). If necessary, use a synthetic based lubricant to aid in grommet installation.
Position cable into retainer clip (2) and tighten clip to secure cable. Route cable (1) up towards transaxle shift lever.

Lower vehicle.

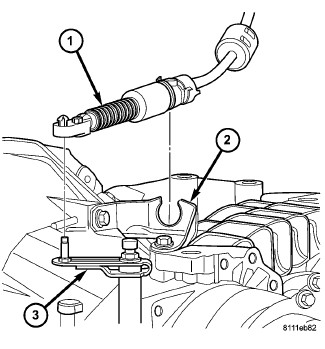

Fig 2: Identifying Gearshift Cable At Transaxle

Courtesy of CHRYSLER GROUP, LLC

1 - GEARSHIFT CABLE

2 - BRACKET

3 - MANUAL VALVE LEVER

Install cable (1) to bracket (2).

Install cable to transaxle shift lever (3).

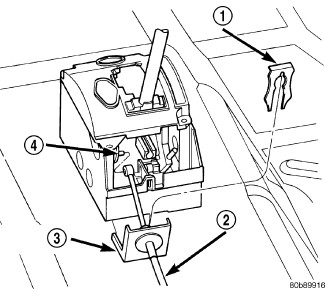

Fig 3: Gearshift Cable At Floor Shifter

Courtesy of CHRYSLER GROUP, LLC

1 - CLIP

2 - CABLE

3 - CONDUIT BRACKET

4 - SHIFT PIN

Connect cable (2) to shifter conduit bracket (3) and shift pin (4). Install cable retaining clip (1).

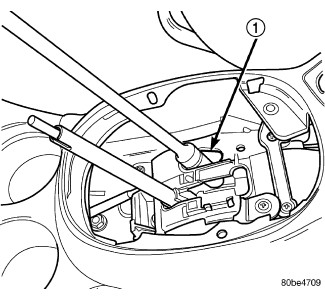

Fig 4: Shift Cable Adjust Lever Nut-Typical
Courtesy of CHRYSLER GROUP, LLC

1 - ACCESS HOLE
Verify transaxle shift lever and floor shifter lever are in the PARK position.

Tighten cable adjuster nut to 23 N.m (200 in. lbs.).

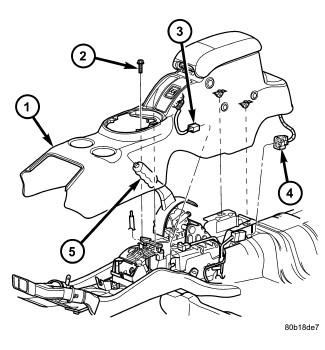

Fig 5: View Of Center Console Assembly

Courtesy of CHRYSLER GROUP, LLC

1 - CENTER CONSOLE

2 - SCREW

3 - ELECTRICAL CONNECTOR

4 - ELECTRICAL CONNECTOR

5 - PARK BRAKE HANDLE

Install center console assembly (1).

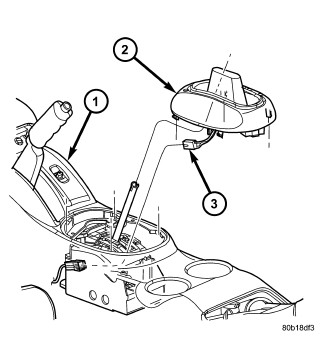

Fig 6: Identifying Gearshift Bezel

Courtesy of CHRYSLER GROUP, LLC

1 - CENTER CONSOLE ASSEMBLY

2 - GEARSHIFT BEZEL

3 - LAMP CONNECTOR

Install gearshift bezel (2).

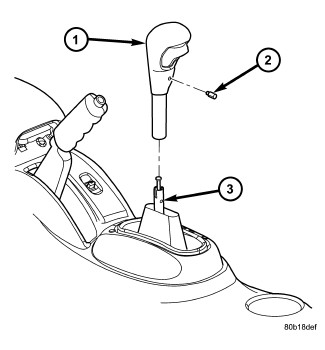

Fig 7: View Of Gearshift Knob

Courtesy of CHRYSLER GROUP, LLC

1 - GEARSHIFT KNOB

2 - SET SCREW

3 - GEARSHIFT MECHANISM

Install gearshift knob (1) and tighten set screw (2) to 2 N.m (20 in.lbs.).
Verify proper cable adjustment. Engine starter should only engage in PARK and NEUTRAL gear shifter positions. If adjustment is required. Refer to CABLE, SHIFT, ADJUSTMENTS .
