Hand Operated Parking Brake Lever

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Hand Lever Mounting

Courtesy of CHRYSLER GROUP, LLC

Position the parking brake lever (1) on the shifter bracket (4).

Fig 2: Hand Lever Mounting Vertical Bolt
Courtesy of CHRYSLER GROUP, LLC

NOTE:
When installing the vertical mounting bolt in the following step make sure to capture the ground strap (2) with the mounting bolt (1) before installation.

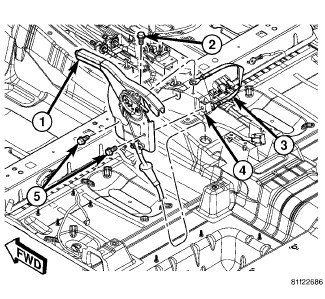

Fig 3: Hand Lever Mounting
Courtesy of CHRYSLER GROUP, LLC
Install the two horizontal (5) and one vertical (2) mounting bolts. Tighten the nuts to 20 N.m (15 ft. lbs.).

Fig 4: Parking Brake Indicator Lamp Switch & Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the wiring connector (2) at the parking brake indicator lamp switch (1).

Fig 5: Cable Mounting To Hand Lever
Courtesy of CHRYSLER GROUP, LLC
Install the mounting screws (3) fastening the front cable (4) to the side of the parking brake lever (1). Tighten the mounting screws to 28 N.m (21 ft. lbs.).
Route the cable strand around the lever cable guide and start the adjusting nut (2) on the end of the cable stud. Do not install the nut any further than having the threads flush with the top of the nut before the next step is performed.

Fig 6: Parking Brake Cables, Bracket & Equalizer
Courtesy of CHRYSLER GROUP, LLC
Make sure the cables (2, 3, 5) are connected to the cable equalizer/bent nail tensioner (4) at the intermediate bracket (1) under the vehicle.
Reset the hand lever cable tension and verify check operation of the parking brake. Refer to PARKING BRAKE, STANDARD PROCEDURE .

Fig 7: Hand Lever Cover Mounting
Courtesy of CHRYSLER GROUP, LLC
Install the cover on the side of the parking brake lever.

Fig 8: Center Console
Courtesy of CHRYSLER GROUP, LLC
Install the floor center console. Refer to CONSOLE, CENTER, REMOVAL .
