Standard Procedure - Brake Rotor Machining

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Refacing the rotor is not required each time the brake pads are replaced, only when the need is foreseen.

Any servicing of the rotor requires extreme care to maintain the rotor within service tolerances to ensure proper brake action.

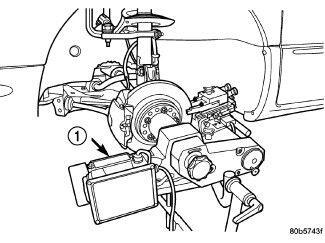

Fig 1: On-Car Brake Lathe

Courtesy of CHRYSLER GROUP, LLC

1 - ON-CAR BRAKE LATHE

If the rotor surface is deeply scored or warped, or there is a complaint of brake roughness or brake pedal pulsation, the rotor should be refaced using a hub-mounted on-car brake lathe (1), or replaced.

The use of a hub-mounted on-car brake lathe (1) is highly recommended to eliminate the possibility of excessive runout. It trues the brake rotor to the vehicle's hub and bearing.

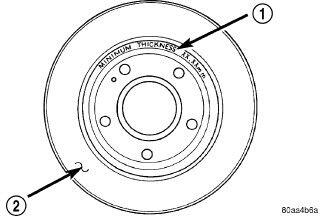

Fig 2: Minimum Thickness Marking On Rotor Surface

Courtesy of CHRYSLER GROUP, LLC

1 - ROTOR MINIMUM THICKNESS MARKING

2 - ROTOR

NOTE:

All brake rotors (2) have markings for minimum allowable thickness cast on an unmachined surface of the rotor (1) or stamped into the hat section. Minimum thickness specifications can also be found in this component's specification table. Refer to ROTOR, BRAKE, SPECIFICATIONS .

Minimum allowable thickness is the minimum thickness which the brake rotor machined surface may be cut to.

CAUTION:

Do not machine the rotor if it will cause the rotor to fall below minimum thickness.

Before lathe installation, verify the brake rotor face and the hub adapters are free of any chips, rust, or contamination.

When mounting and using the brake lathe, strict attention to the brake lathe manufacturer's operating instructions is required.

Machine both sides of the brake rotor at the same time. Cutting both sides at the same time minimizes the possibility of a tapered or uneven cut.

When refacing a rotor, the required TIR (Total Indicator Reading) and thickness variation limits MUST BE MAINTAINED. Extreme care in the operation of rotor turning equipment is required. Specifications for brake rotor machining can be found in the specification table. Refer to ROTOR, BRAKE, SPECIFICATIONS .
