Rotor, Brake: Removal: Front
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the wheel mounting nuts (3), then the tire and wheel assembly (1).NOTE:
In some cases, it may be necessary to retract the caliper piston in its bore a small amount in order to provide sufficient clearance between the pads and the rotor to easily remove the caliper from the knuckle. This can usually be accomplished before removal by grasping the inboard side of the caliper and pulling outward working with the guide pins, thus retracting the piston. Never push on the piston directly as it may get damaged.

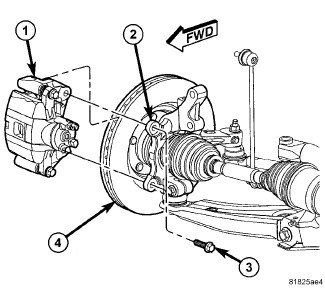

- Remove the two bolts (3) securing disc brake caliper and adapter bracket (1) to the steering knuckle (2).
- Remove the disc brake caliper and adapter bracket (1) from the knuckle (2) and rotor (4) as an assembly. Hang the assembly out of the way using wire or a bungee cord. Use care not to overextend the brake hose when doing this.
- Remove any clips retaining the brake rotor to the wheel mounting studs.

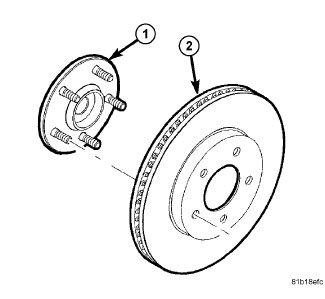

- Slide the brake rotor (2) off the hub and bearing (1).
