Reservoir, Windshield Washer: Installation: Installation
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
- Position the washer reservoir to the left side of the cooling module.
- Engage the mounting provisions at the bottom of the washer reservoir with the cooling module.

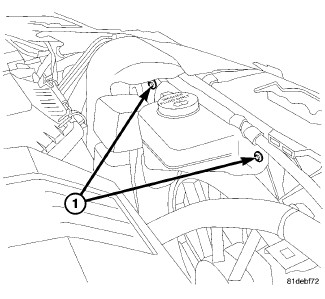

- Install and tighten the two screws (1) that secure the washer reservoir inboard and outboard mounting brackets to the back of the cooling module. Tighten the screws securely.
- Engage each of the Front End Module (FEM) wire harness takeouts and washer supply hoses into the integral routing provisions of the washer reservoir.

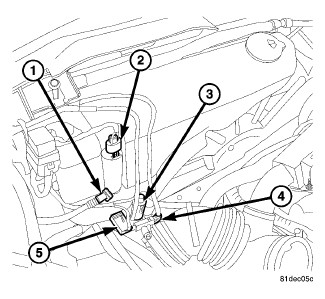

- Reconnect the FEM wire harness connector (3) and the front and rear washer supply hoses (4) to the reversible washer pump/motor unit.
- Reconnect the FEM wire harness connector (5) to the washer fluid level switch connector receptacle on the back of the reservoir.

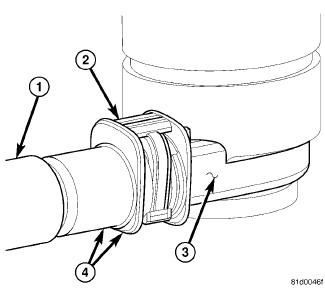

- If the vehicle is so equipped, reconnect the FEM wire harness connector and headlamp washer supply hose (1) to the headlamp washer pump/motor unit. To reconnect the quick connect fitting (4), first seat the molded plastic lock (2) onto the washer supply hose quick connect fitting. Next, push the quick connect fitting onto the headlamp washer pump/motor unit outlet nipple (3) until it snaps into place with an audible click.
- If removed, reinstall the air filter housing. For 2.4L, refer to BODY, AIR CLEANER, INSTALLATION , For 3.6L, refer to BODY, AIR CLEANER, INSTALLATION .
- Refill the washer reservoir with the washer fluid drained from the reservoir during the removal procedure.
- Reconnect the negative cable to the battery.
