Front And Rear
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
- Install a new rubber grommet seal/filter screen into the washer pump mounting hole in the washer reservoir. Always use a new rubber grommet seal/filter screen on the reservoir.

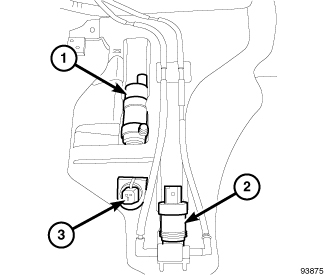

- Position the inlet nipple on the base of the pump housing of the washer pump/motor unit (2) to the rubber grommet seal/filter screen in the reservoir.
- Using hand pressure, press firmly and evenly downward on the top of washer pump/motor unit until the inlet nipple is fully seated in the rubber grommet seal/filter screen in the pump mounting hole of the reservoir.
- Align the top of the washer pump/motor unit housing with the receptacle in the washer reservoir.
- Using hand pressure, press firmly and evenly on the top of washer pump/motor unit until the motor housing snaps into the receptacle.
- Reinstall the washer reservoir onto the cooling module. Refer to RESERVOIR, WINDSHIELD WASHER, INSTALLATION .
- Refill the washer reservoir with the washer fluid drained from the reservoir during the removal procedure.
- Reconnect the negative cable to the battery.
