Nozzle, Washer: Removal: Front
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

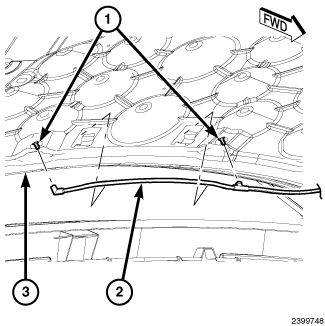

- From the underside of the hood (3), remove the push-in retainers that secure the rear edge of the hood silencer pad to the inner hood reinforcement as necessary to access the washer nozzle hose (2) connections.
- From the underside of the hood, disconnect the washer nozzle hose from the barbed nipple (1) of the washer nozzle.
- From the underside of the hood, release the integral latch features of the washer nozzle (1) and push the nozzle out through the mounting hole toward the top side of the hood.
- Remove the washer nozzle from the top of the hood panel.
