Blade, Wiper: Description: Front
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

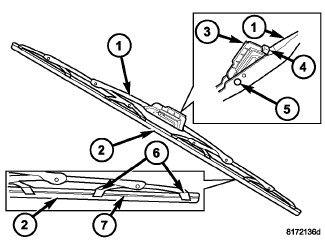

Each wiper blade is secured by an integral latching pivot block (3) to the hook formation on the tip of each wiper arm, and rests on the glass near the base of the windshield when the wipers are not in operation. The wiper blade consists of the following components:
- Superstructure (1) - The superstructure includes several stamped steel bridges and links with claw formations (6) that grip the wiper blade element. Also included in this unit is the latching, molded plastic pivot block that secures the superstructure to the wiper arm. All of the metal components of the wiper blade have a satin black finish applied.
- Element (2) - The wiper element or squeegee is the resilient rubber member of the wiper blade that contacts the glass.
- Flexor (7) - The flexor is a rigid metal component running along the length of each side of the wiper element where it is gripped by the claws of the superstructure.
The passenger side wiper blades are 47.50 centimeters (18.70 inches) long. The driver side wiper blades are 60 centimeters (23.62 inches) long. They have non-replaceable rubber elements (squeegees). The wiper blades cannot be adjusted or repaired. If ineffective, worn, or damaged the entire wiper blade unit must be replaced.
