Diagnosis And Testing - HOMELINK Transceiver
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
If the HomeLink® transceiver is inoperative, retrain the transceiver with a known good transmitter, insuring the transmitter battery is OK. Refer to STANDARD PROCEDURE . Test the universal transmitter operation again. If the unit is still inoperative, test the universal transmitter with Radio Frequency Detector special tool as described below:

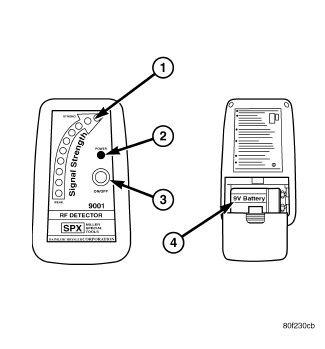

- Turn the Radio Frequency (RF) Detector ON (3). A "chirp" will sound and the green power Light Emitting Diode (LED) will light (2). If the green LED does not light, replace the battery (4).
- Hold the RF detector within one inch of the TRAINED universal transmitter and press any of the transmitters buttons.
- The red signal detection LEDs (1) will light and the tool will beep if a radio signal is detected. Repeat this test for all three transmitter buttons. If the tool does not detect a radio signal for any of the three buttons, replace the inoperative HomeLink® transceiver assembly. Refer to VISOR, REMOVAL .
