Outlet, Power, 115 V: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

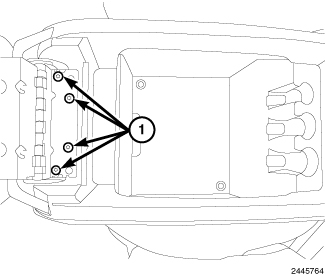

Fig 1: Center Console Hinge Screws

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Open the center console and remove the hinge screws (1).

Fig 2: Removing/Installing Rear Bezel
Courtesy of CHRYSLER GROUP, LLC
Slide the rear bezel (1) up to remove.

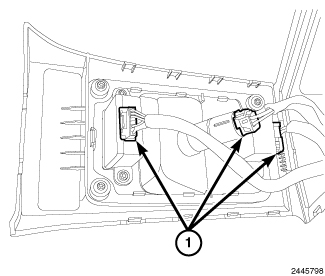

Fig 3: Electrical Connectors
Courtesy of CHRYSLER GROUP, LLC
Disconnect the electrical connectors (1).

Fig 4: Mounting Tabs
Courtesy of CHRYSLER GROUP, LLC
Depress the mounting tabs (1) on the top and bottom of the outlet to remove.
