Center, Power Distribution (PDC): Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    G00580983Courtesy of CHRYSLER GROUP, LLC

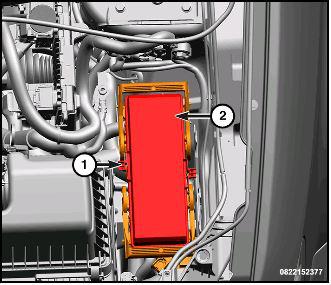

  2. Remove the Power Distribution Center (PDC) upper cover (2) by pressing inward on and releasing both tabs (1) located on the sides.

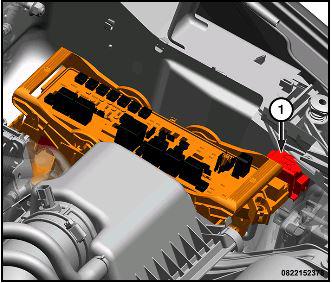

  3. Remove positive (+) battery cable cover (1).
    G00580984Courtesy of CHRYSLER GROUP, LLC

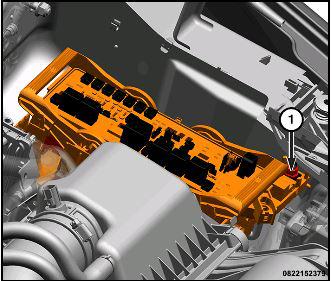

  4. Remove the fastener (1) and positive (+) battery cable.
    G00580985Courtesy of CHRYSLER GROUP, LLC

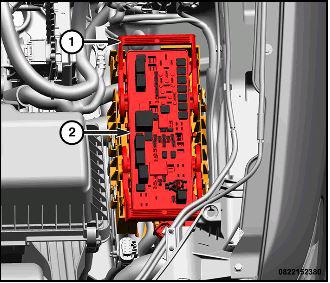

  5. Lift up on two cam levers (1) releasing the PDC (2) from the electrical connectors and remove the PDC from the vehicle.
    G00580986Courtesy of CHRYSLER GROUP, LLC
