Tube, Sunroof Drain: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

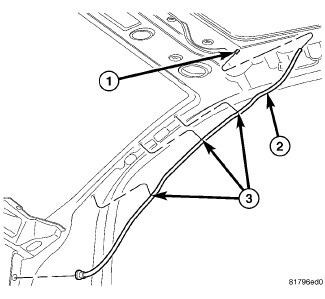

Fig 1: Sunroof Assembly, Front Hoses & Support Clips

Courtesy of CHRYSLER GROUP, LLC

Drop down the headliner as necessary to gain access to the drain hoses. Refer to HEADLINER, REMOVAL .
Disconnect the front hoses (2) from the sunroof assembly (1).
Release the support clips (3) and disconnect the lower grommet and remove the hose.

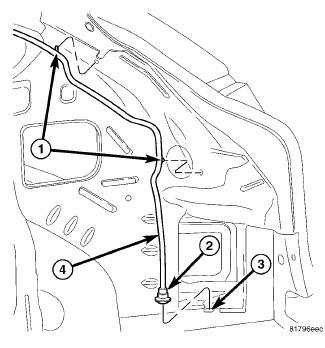

Fig 2: Drain Tubes & Sunroof Housing
Courtesy of CHRYSLER GROUP, LLC
Disconnect the rear hoses (2) from the sunroof assembly (1) and release the support clips (3).

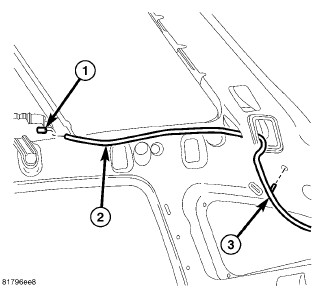

Fig 3: Support Clips, Grommet, Body & Rear Hose
Courtesy of CHRYSLER GROUP, LLC
Separate the remaining support clips (1).
Disconnect the grommet (2) from the body (3) and remove the rear hoses as necessary.
