Trough, Sunroof: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

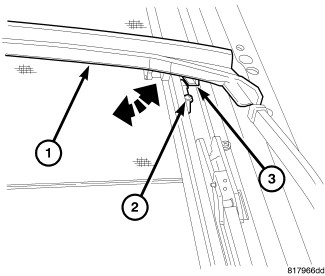

Fig 1: Trough Pins & Glass Lift Mechanisms

Courtesy of CHRYSLER GROUP, LLC

Remove the glass. Refer to GLASS, SUNROOF, REMOVAL .
Separate the trough pins (3) from the glass lift mechanisms (1).

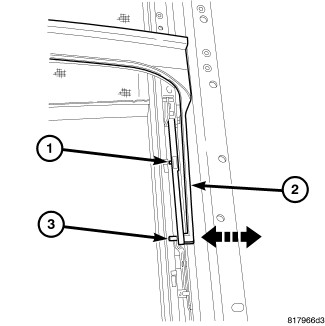

Fig 2: Trough, Shoe Tab & Track
Courtesy of CHRYSLER GROUP, LLC
Slide trough (1) to one side and push down on the center of the trough until the guide shoe tab (3) releases from the track (2).
Slide the trough in the opposite direction to release the other shoe and lift the trough out of the sunroof opening.
