Cover, Seat Cushion, Third Row: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

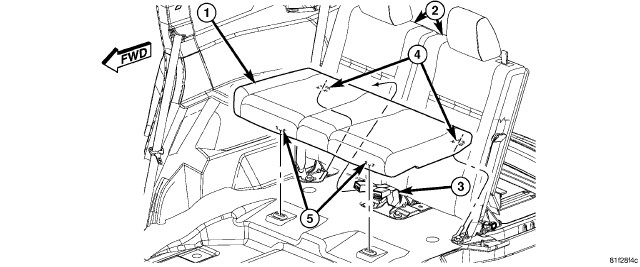

Fig 1: Third Row Seat Cushion Cover
GC0129026Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear storage box. Refer to BOX, STORAGE, REAR, REMOVAL .
  2. Lift front edge of the third row seat until retainers (5) disengage.
  3. With the help of an assistant, carefully pry up on the hooks (4) while the seat cushion is being pressed towards the seat back.
  4. While lifting up on the hooks, pull the seat cushion out towards the front of the vehicle and remove the seat cushion.
  5. Disengage J-clips from seat cushion.
  6. Carefully remove the seat cover from the cushion, removing any hog rings and discarding.
