Panel, C-Pillar Trim: Removal: Removal
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

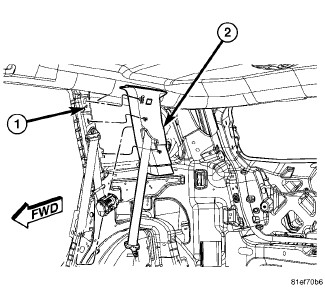

- Remove the quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL .
- Remove seat belt anchor bolt. Refer to RETRACTOR, SEAT BELT, REMOVAL .
- Remove the access hole cover and remove the mounting fastener.
- Using trim stick (special tool #C-4755, Trim Stick), carefully pry the C-pillar out disengaging the retaining clips.
- Route seat belt through opening and remove C-pillar trim panel from vehicle.
