Console Assembly

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

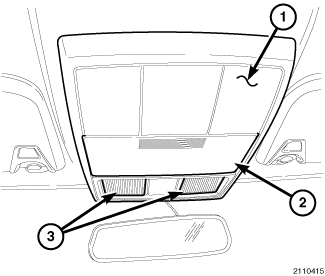

Fig 1: Console Assembly
GC0128657Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Using your fingertips, grasp the sides of the overhead console (1) and pull straight down evenly to disengage the snap clips from the mounting bracket.

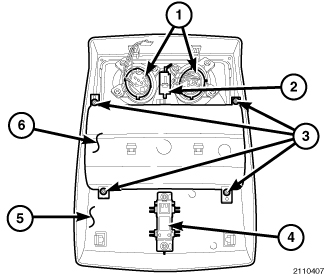

    Fig 2: Overhead Console, Sunglasses Bin & Fasteners
    GC0128656Courtesy of CHRYSLER GROUP, LLC
  3. Lower the overhead console (5) far enough to access the wire harness connectors.
  4. If equipped, disconnect the courtesy lamps (1), infrared temperature sensor (2) and power sunroof switch (4) electrical connectors.
  5. Remove the overhead console assembly from the vehicle.
