Panel, Instrument: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Do not attempt to remove the instrument panel as an assembly. The instrument panel cover/pad must be removed prior.

Fig 1: Drivers Side Vehicle Harnesses
GC0139162Courtesy of CHRYSLER GROUP, LLC
  1. Remove the instrument panel cover/pad. Refer to PAD, INSTRUMENT PANEL, REMOVAL .
  2. Disconnect the vehicle harnesses (1, 2) located on the driver side of the vehicle.

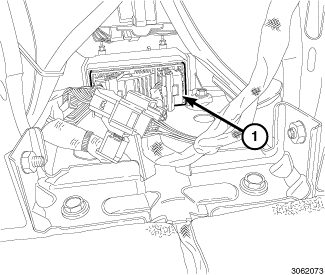

    Fig 2: Occupant Restraint Controller Harness
    GC0139163Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the harness (1) from the occupant restraint controller. Refer to MODULE, OCCUPANT RESTRAINT CONTROLLER, REMOVAL .
    Fig 3: Body Control Module Harness
    GC0147740Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the harness (1) from the body control module located on the lower passenger side.

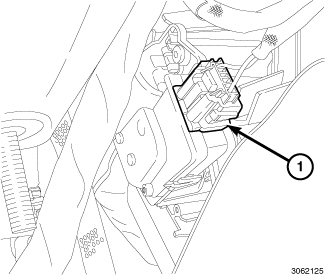

    Fig 4: HVAC Housing Actuator Harness
    GC0139164Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the harness (1) from the HVAC housing actuator.

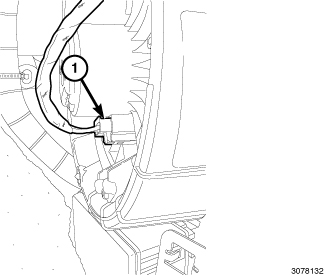

    Fig 5: HVAC Housing Blower Motor Harness
    GC0139165Courtesy of CHRYSLER GROUP, LLC
  6. Disconnect the harness (1) from the HVAC housing blower motor.
    Fig 6: HVAC Housing Harness
    GC0139166Courtesy of CHRYSLER GROUP, LLC
  7. Detach the harness (1) from the HVAC housing.
    Fig 7: HVAC Housing Power Module Harness
    GC0139167Courtesy of CHRYSLER GROUP, LLC
  8. Disconnect the harness (1) from the HVAC housing power module.

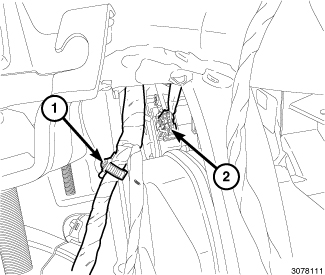

    Fig 8: HVAC Housing Actuator Harness
    GC0139168Courtesy of CHRYSLER GROUP, LLC
  9. Detach the harness retainer from the I/P structure.
  10. Disconnect the harness (2) from the HVAC housing actuator.

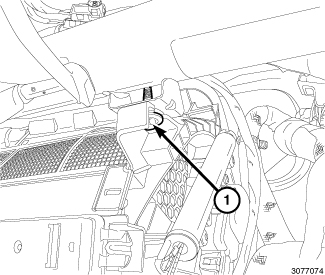

    Fig 9: HVAC Housing Bolt (Right Side)
    GC0139169Courtesy of CHRYSLER GROUP, LLC
  11. Remove the I/P structure to HVAC housing bolt (1) located on the right side of the HVAC housing.
    Fig 10: HVAC Housing Bolt (Left Side)
    GC0139170Courtesy of CHRYSLER GROUP, LLC
  12. Remove the I/P structure to HVAC housing bolt (1) located on the left side of the HVAC housing.

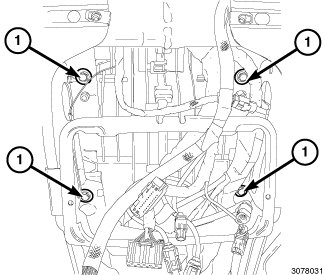

    Fig 11: HVAC Housing Bolts
    GC0139171Courtesy of CHRYSLER GROUP, LLC
  13. Remove the I/P structure to HVAC housing bolts (1) located in the center of the structure.

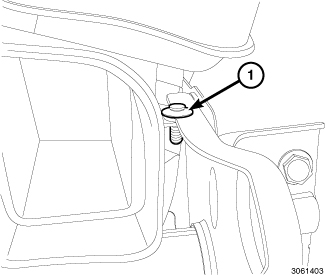

    Fig 12: Outboard HVAC Fastener
    GC0139172Courtesy of CHRYSLER GROUP, LLC
  14. Remove the fastener (1) securing the outboard HVAC duct to the I/P structure/support.

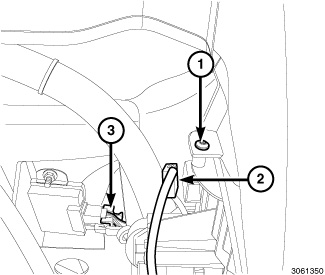

    Fig 13: HVAC Housing Near Center Bezel Fastener
    GC0139173Courtesy of CHRYSLER GROUP, LLC
  15. Remove the fastener (1) securing the duct to the HVAC housing near the center bezel area on the LH side.

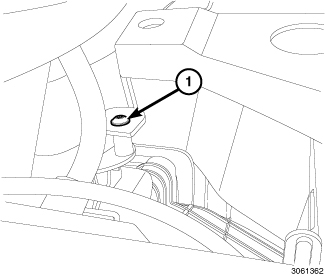

    Fig 14: Duct To HVAC Housing Fastener
    GC0139174Courtesy of CHRYSLER GROUP, LLC
  16. Remove the fastener (1) securing the duct to the HVAC housing near the center bezel area on the RH side.

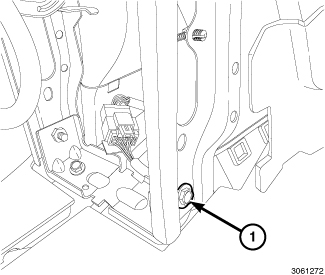

    Fig 15: I/P Structure To Center Floor Bracket Fastener
    GC0139175Courtesy of CHRYSLER GROUP, LLC
  17. Remove the fastener (1) securing the I/P structure to the center floor bracket. Repeat on the opposite side.
    Fig 16: Upper Brackets
    GC0139176Courtesy of CHRYSLER GROUP, LLC
  18. Remove the two fence bolts (2) securing the upper brackets (1).

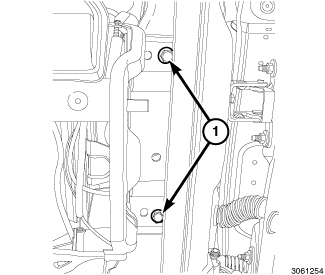

    Fig 17: I/P Structure Bolts
    GC0139177Courtesy of CHRYSLER GROUP, LLC
  19. Remove the two bolts (1) securing the I/P structure side to the vehicle. Repeat for the opposite side.

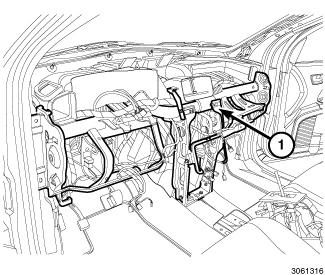

    Fig 18: I/P Structure
    GC0139178Courtesy of CHRYSLER GROUP, LLC
  20. With the help of an assistant, lift the I/P structure (1) and upper HVAC ductwork up and rearward.
  21. Remove the I/P structure (1) from the vehicle. If necessary, separate the ductwork from the structure.
