Cable, Hood Release: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Hood Release Handle
GC0128985Courtesy of CHRYSLER GROUP, LLC
  1. Remove left front cowl trim panel.
  2. Remove screws (2) attaching hood release handle (1) to inner cowl panel.
  3. Disconnect the hood release cable from the latch handle.
  4. Disengage rubber grommet at lower dash panel.
  5. Disengage push-in fastener (3) attaching hood release cable (4) to dash panel.

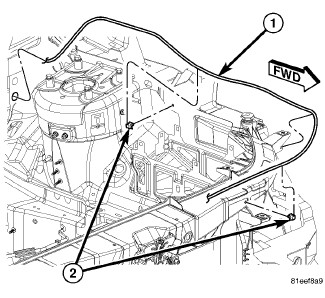

    Fig 2: Hood Release Cable
    GC0128986Courtesy of CHRYSLER GROUP, LLC
  6. Remove hood latch. Refer to LATCH, HOOD, REMOVAL .
  7. Release clips (2) attaching hood release cable to left inner frame rail.
  8. Remove hood release cable (1) from vehicle.
