Fender, Front: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fascia. Refer to FASCIA, FRONT, REMOVAL .
  2. Remove headlamp assembly. Refer to UNIT, FRONT LAMP, REMOVAL .
  3. Remove inner splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL  .

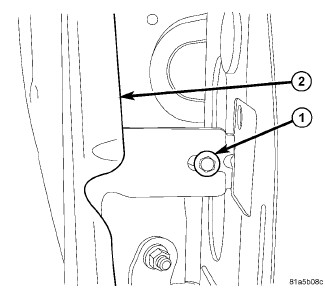

    Fig 1: Fender & Fastener
    GC0122946Courtesy of CHRYSLER GROUP, LLC
  4. Remove fender (2) dogleg to body fastener (1).
    Fig 2: Fender Support Bracket
    GC0122947Courtesy of CHRYSLER GROUP, LLC
  5. Remove fender brace (1).
  6. Remove fender fastener to lower rocker panel.

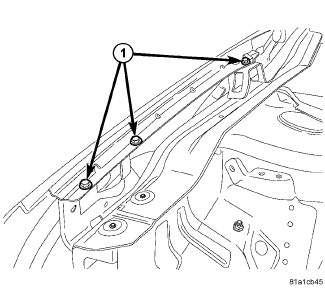

    Fig 3: Upper Fender Fasteners
    GC0122948Courtesy of CHRYSLER GROUP, LLC
  7. Remove fasteners attaching fender to upper rail.
  8. Remove fender from vehicle.
