Repair Procedure For Floor/Tub Seams

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

If the customer experiences a damp and/or wet floor around the seats, cargo area or front of the vehicle remove the carpet. Refer to CARPET, FLOOR, REMOVAL .

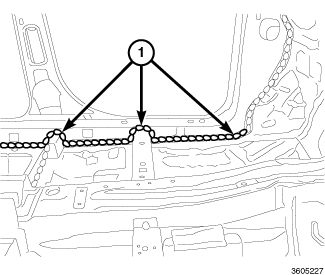

Fig 1: Front Floor Sealing
Courtesy of CHRYSLER GROUP, LLC
Inspect all front floor seam sealer (1) around the seat mounting locations, cargo area and the front of the vehicle.

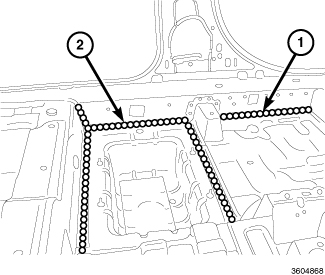

Fig 2: Rear Seats Sealing
Courtesy of CHRYSLER GROUP, LLC
Inspect all rear floor and seat mounting seam sealer locations (2).

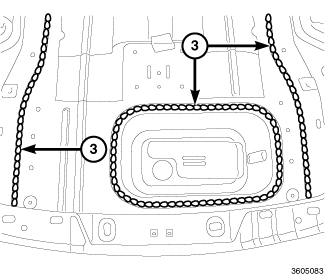

Fig 3: Rear Cargo Area Sealing
Courtesy of CHRYSLER GROUP, LLC
Inspect all rear cargo area seam sealer locations (3).
Fill all voids with Paintable Clear Seam Sealer.
Re-install the carpet. Refer to CARPET, FLOOR, INSTALLATION .
