Handle, Exterior, Liftgate: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Nut & Liftgate

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Remove the liftgate trim panel. Refer to PANEL, TRIM, LIFTGATE, REMOVAL .
Remove the nut (1) that secures the liftgate handle assembly to the inside of the liftgate (2).

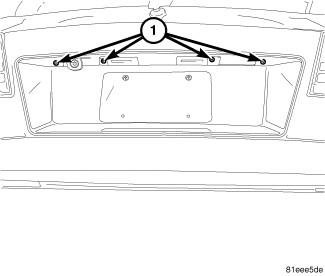

Fig 2: Liftgate Handle Screws
Courtesy of CHRYSLER GROUP, LLC
Remove the four screws (1) that secure the liftgate handle assembly to the outside of the liftgate.

Fig 3: Backup Camera Assembly, Electrical Connectors & Cable
Courtesy of CHRYSLER GROUP, LLC
Partially remove the liftgate handle assembly (4) from the liftgate and disconnect the electrical connectors (1 and 2), as equipped.
Disconnect the liftgate handle latch cable (3) and remove the liftgate handle assembly.
