Diagnostic Test
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
- INTERMITTENT CONDITION
- Turn the ignition on.
- With the scan tool, clear all DTCs.
- Cycle the Rear Wiper Switch on and off three times.
- With the scan tool, read DTCs.
Does the scan tool display this DTC as active?
Yes
- Go To 2
No
- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
- Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
- CHECK THE REAR WIPER MOTOR FOR CORRECT OPERATION
- Turn the ignition off.
- Disconnect the Rear Wiper Motor harness connector.
- Turn the ignition on.
- Turn the rear wipers on.
- With the scan tool, read the DTCs.
Does the scan tool display DTC: B230C-13-REAR WIPER PARK SWITCH INPUT - CIRCUIT OPEN?
Yes
- Replace the Rear Wiper Motor in accordance with the Service Information. Refer to MOTOR, WIPER, REMOVAL .
- Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
No
- Go To 3

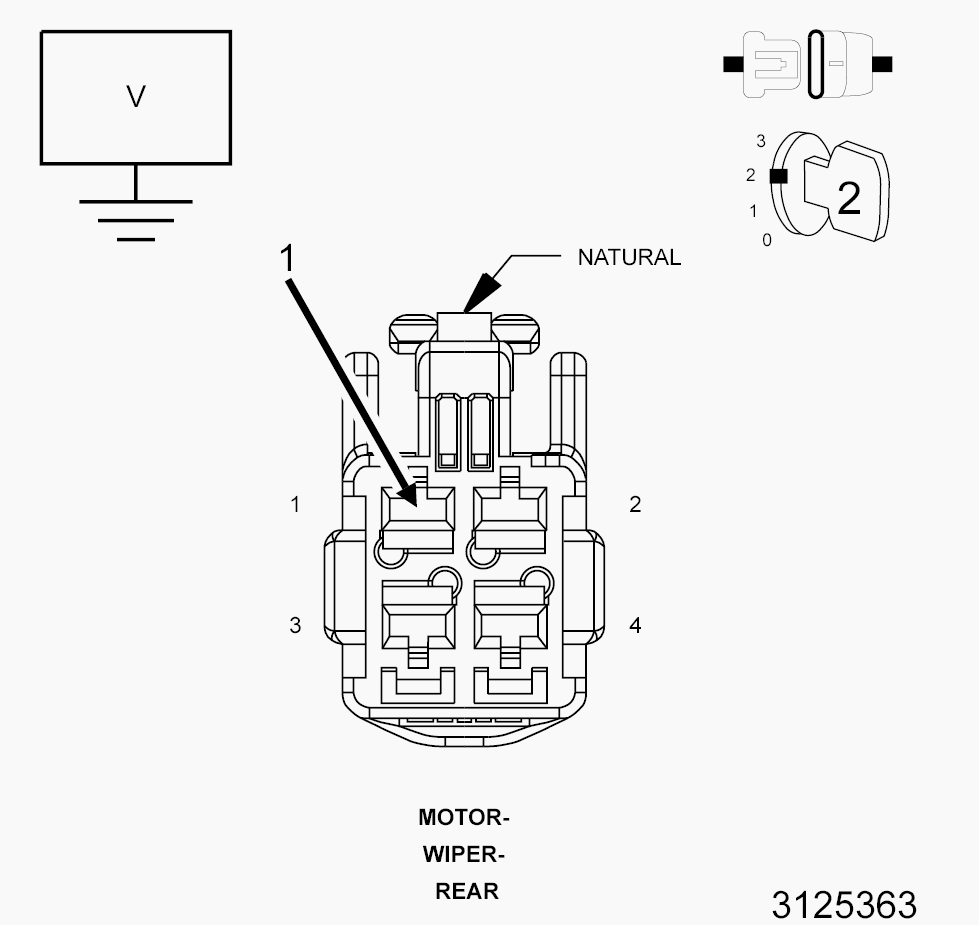

- CHECK (W17) REAR WIPER PARK SWITCH SENSE CIRCUIT FOR A SHORT TO VOLTAGE
Courtesy of CHRYSLER GROUP, LLC
- Turn the ignition off.
- Disconnect the BCM E harness connector.
- Turn the ignition on.
- Measure the voltage between ground and the (W17) Rear Wiper Park Switch Sense Circuit.
Is there any voltage present?
Yes
- Repair the short to voltage in the (W17) Rear Wiper Park Switch Sense circuit.
- Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
No
- Replace the BCM in accordance with the Service Information. Refer to MODULE, BODY CONTROL, REMOVAL .
- Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
