Indicators, Instrument Cluster: Description: Description

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

The Instrument Cluster (IC) assembly has provisions for up to 19 International Control and Display Symbol icon indicators that are all controlled by the IC. Some of the indicators are automatically configured when the IC is connected to the vehicle electrical system for compatibility with certain optional equipment or equipment required for regulatory purposes in certain markets. While each IC may have provisions for indicators to support every available option, the configurable indicators will not function in vehicles that do not have the equipment that an indicator supports.

A dedicated Light Emitting Diode (LED) soldered onto the circuit board illuminates each indicator in the IC, except those within an electronic display unit. Several dimmable LED units illuminate each gauge dial face for visibility when the exterior lighting is turned ON. These LED units are not available for service replacement and, if damaged or ineffective, the entire IC must be replaced.

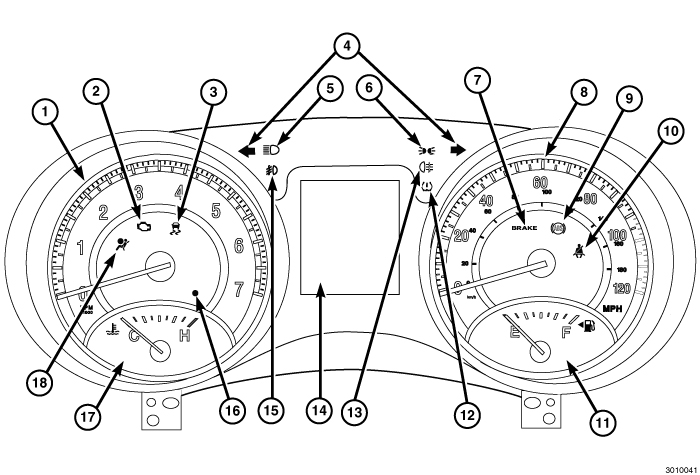

Fig 1: Electronic Vehicle Information Center (EVIC)

Courtesy of CHRYSLER GROUP, LLC

The instrument cluster includes provisions for the following ISO icon indicators:

Airbag Indicator (18)
Antilock Brake System (ABS) Indicator (9)
Brake Indicator (7)
Electronic Stability Control (ESC) Indicator (3)
ESC OFF Indicator (14) - textual message in the Thin Film Transistor (TFT) display.
Front Fog Lamp Indicator (15)
High Beam Indicator (5)
Low Fuel Indicator (14) - icon in the TFT display.
Malfunction Indicator Lamp (MIL) (2)
Position Lamp Indicator (6)
Rear Fog Lamp Indicator (13) - in markets where rear fog lamps are available only.
Seat Belt Indicator (10)
Security Indicator (16)
Tire Pressure Monitor (TPM) Indicator (12)
Turn Signal (Right and Left) Indicators (5)

Many systems and features found in this vehicle display messages or icons within the TFT (14). The IC includes provisions for the following ISO icon indicators or textual messages within this display:

Change Oil Indicator - icon in the TFT display.
Check Gauges Indicator - textual message in TFT display.
Coolant Low Indicator - icon in the TFT display.
Cruise Indicator - textual message in the TFT display.
Electronic Throttle Control (ETC) Indicator - icon in the TFT display.
Gas Cap Indicator - icon in the TFT display.
Low Brake Fluid Level Indicator - textual message in TFT display.
No Bus Indicator - textual message in TFT display.
Odometer - in TFT display.
Park Assist Disabled Indicator - icon in the TFT display.
Power Liftgate Indicator - an icon in the TFT display.
Remote Start Indicator - textual message in TFT display.
Service Park Assist System Indicator - textual message in TFT display.
Transmission Overtemp Indicator - icon in the TFT display.
Turn-Signal-On Reminder Indicator - textual message in TFT display.
Washer Fluid Indicator - icon in the TFT display.
Wait-To-Start Indicator - icon in the TFT display (diesel engines only).
Water-In-Fuel Indicator - icon in the TFT display (diesel engines only).

For more information on the International Control and Display Symbol icons, refer to INTERNATIONAL VEHICLE CONTROL AND DISPLAY SYMBOLS, DESCRIPTION .

Each indicator in the IC, except those located within an electronic display unit, is illuminated by a dedicated Light Emitting Diode (LED) unit that is soldered onto the IC electronic circuit board. Cluster illumination is accomplished by several dimmable LED units, which illuminate each of the gauge dial faces for visibility when the exterior lighting is turned ON. These LED units are serviced only as a complete unit with the IC and, if damaged or ineffective, the entire IC assembly must be replaced. The cluster lens and the cluster hood and mask unit are the only components of the IC that can be serviced separately.
