Third Row Turning Loop Bracket

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

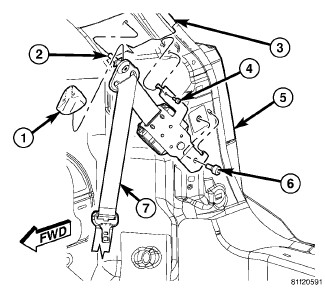

Fig 1: Third Row Seat Belt Turning Loop On Inside Of Upper D-Pillar Trim

Courtesy of CHRYSLER GROUP, LLC

Unsnap and remove the trim cover (1) from the third row seat belt turning loop on the inside of the upper D-pillar trim (3) to access the turning loop screw (2).
Remove the screw (2) that secures the seat belt turning loop to the bracket on the inside of the upper D-pillar.
Remove the turning loop from the D-pillar.
Remove the trim from the inside of the upper D-pillar. Refer to PANEL, D-PILLAR TRIM, REMOVAL .

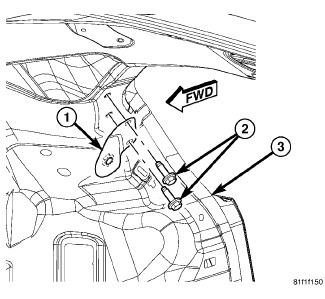

Fig 2: Upper D-Pillar, Seat Belt Turning Loop Bracket & Screws
Courtesy of CHRYSLER GROUP, LLC
Remove the two screws (2) that secure the seat belt turning loop bracket (1) to the inside of the upper D-pillar (3).
Remove the turning loop bracket from the D-pillar.
