Third Row

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

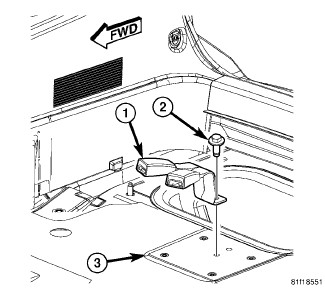

Fig 1: Third Row Seat Cushion
GC0128802Courtesy of CHRYSLER GROUP, LLC
  1. Remove the third row seat cushion and cover from the rear floor panel (3). Refer to COVER, SEAT CUSHION, THIRD ROW, REMOVAL .
  2. Reach between the two third row seat back hinge brackets on the rear floor panel to access and remove the screw (2) that secures the third row seat belt buckle (1) anchor plate to the rear floor.
  3. Remove the two buckles from the rear floor panel as a unit.
