With Intermediate Shaft

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Never grasp the halfshaft assembly by the inner or outer boots. This can cause damage to the boot, which will allow contaminants to enter the C/V joint.

NOTE:

The inner tripod joints are designed with a retention feature that prevents the tripod rollers from coming out of the inner joint housing up to a specific load. If this feature is overcome and any of the rollers are pulled past the retention feature the joint will "lock-up" and no longer function properly. The entire halfshaft assembly must be replaced if this occurs.

NOTE:

Some halfshafts use a tuned rubber damper weight to cancel vibration. When replacing a halfshaft assembly, be sure the replacement halfshaft has a damper.

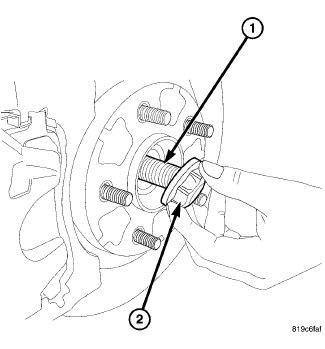

Fig 1: Halfshaft & Nut

Courtesy of CHRYSLER GROUP, LLC

Raise vehicle.
Remove the wheel and tire assembly from the vehicle. Refer to REMOVAL .
Apply the service brakes to keep hub from turning, then loosen the halfshaft nut (2).
NOTE:
Do not re-use the hub nut. The hub nut is a single-use type. A new hub nut is required for reassembly.
Remove the nut (2) from the halfshaft (1) and discard it.

Fig 2: Identifying Front Brake Mounting Components
Courtesy of CHRYSLER GROUP, LLC
Remove the two bolts (4) that secure the front disc brake caliper (5) and adapter (6) to the steering knuckle (3).

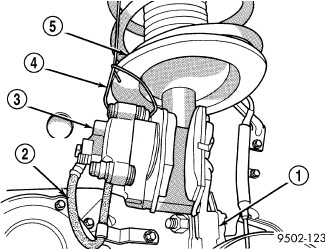

Fig 3: Properly Supported Disc Brake Caliper
Courtesy of CHRYSLER GROUP, LLC
Remove the disc brake caliper assembly (3) from the steering knuckle (1). Caliper assembly is removed by first rotating top of caliper assembly away from steering knuckle and then removing bottom of assembly out from under machined abutment on steering knuckle.
NOTE:
Do not allow the brake caliper assembly to hang by the brake flex hose (2).
Support disc brake caliper assembly by using a wire hanger (4) and suspend it from the strut assembly (5).

Fig 4: Strut To Steering Knuckle Attaching Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the brake rotor from the hub and bearing assembly.
Remove the steering knuckle-to-strut attachment bolts (2) from the steering knuckle (3).
Pull the steering knuckle from the strut clevis bracket (1).

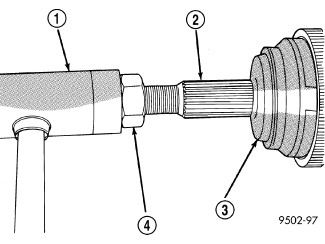

Fig 5: Outer C/V Joint Installation On Interconnecting Shaft
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Due to tight tolerances, the outer C/V joint might have to be forced apart from the bearing hub. To avoid damaging the axle half shaft threads during removal, install the hub nut (4) so that approximately half the threads are engaged on the shaft, and use a soft faced hammer (1) to tap the shaft (2) out of the hub.

NOTE:
Care must be taken not to separate the inner C/V joint during this operation. Do not allow halfshaft to hang by inner C/V joint after removing outer C/V Joint from the hub/bearing assembly in steering knuckle, end of halfshaft must be supported.
Pull steering knuckle assembly down and away from the outer C/V joint of the half shaft assembly while pulling the joint out of the hub bearing.

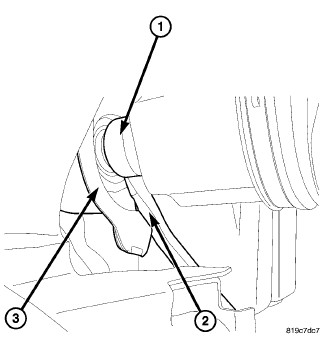

Fig 6: Identifying Strut Clevis Bracket & Outer C/V Joint Of Half Shaft Assembly
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Transaxle fluid might leak when the half shaft is removed from the transaxle.
If equipped, remove the engine belly pan.
Support the outer end of the halfshaft assembly. Insert a pry bar (2) between inner tripod joint (1) and the intermediate shaft (3), or the transaxle case if removing the left half shaft. Pry against inner tripod joint, until tripod joint retaining snap-ring is disengaged from the intermediate shaft or transaxle side gear.

Fig 7: Intermediate Shaft & Right Halfshaft
Courtesy of CHRYSLER GROUP, LLC
Pull the steering knuckle assembly down and away from the outer C/V joint of the half shaft assembly while pulling the halfshaft (1 or 2) out of the transmission.
Remove the half shaft.
