2.0L Turbo Diesel

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

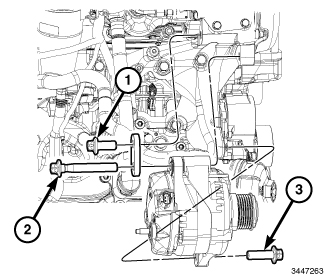

Fig 1: Generator Rear Support Bracket Retainer, Upper Generator Mounting Retainer & Lower Generator Mounting Retainer
GC0148013Courtesy of CHRYSLER GROUP, LLC
  1. Position the generator into the vehicle.
  2. Install the lower generator mounting retainer (3).
  3. Install the upper generator mounting retainer (2).
  4. Tighten retainers (1, 2 and 3) to 70 N.m (52 Ft. Lbs).

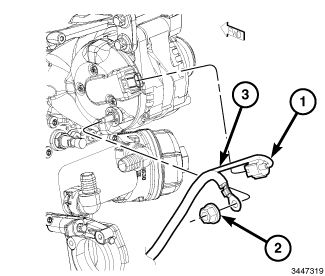

    Fig 2: B+ Retainer, Generator Field Connector & B+ Cable
    GC0148014Courtesy of CHRYSLER GROUP, LLC
  5. Connect the generator field connector (1) and position the B+ cable (3) to the generator stud.
  6. Install the B+ retainer (2).

    Tighten to 10 N.m (89 In. Lbs).

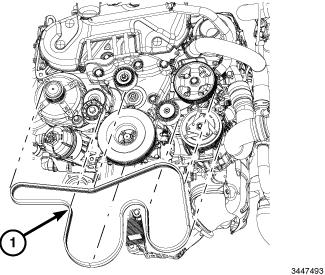

    Fig 3: Identifying Drive Drive Belt
    GC0148015Courtesy of CHRYSLER GROUP, LLC
  7. Install the right intermediate shaft. Refer to INSTALLATIONINSTALLATION .
  8. Install the accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
  9. Install the passenger side splash shields.
  10. Install the passenger side front wheels.

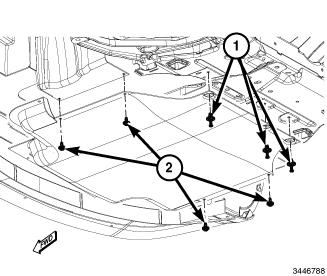

    Fig 4: Push Pin & Side Splash Shields
    GC0148009Courtesy of CHRYSLER GROUP, LLC
  11. Install the retainers from the belly pan to the side splash shields (2).
  12. Install the rear push pin (1).

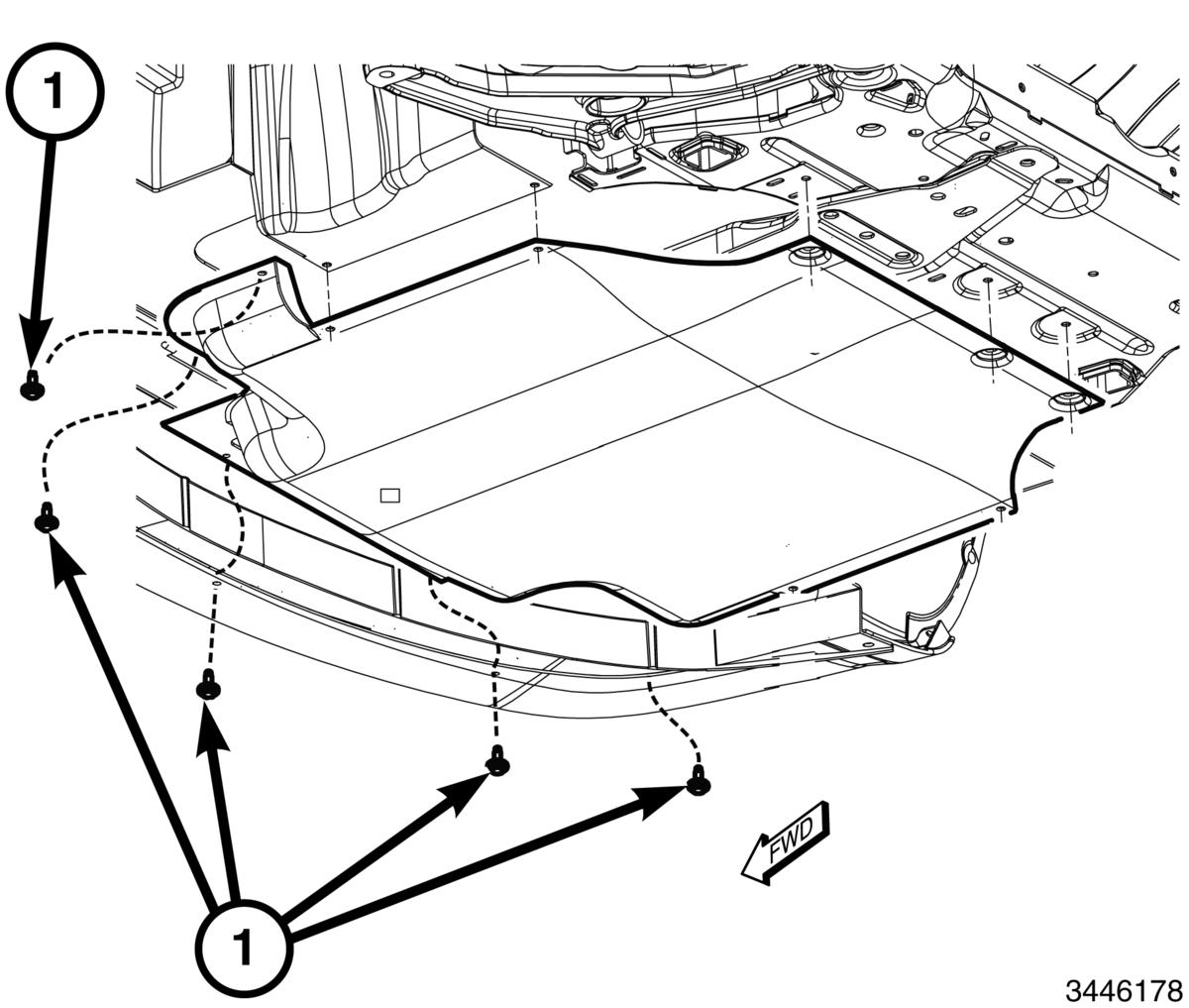

    Fig 5: Front Retainers
    GC0148008Courtesy of CHRYSLER GROUP, LLC
  13. Install the front belly pan front retainers (1).
  14. Connect the negative battery cable.
