Variable Displacement A/C Compressor

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

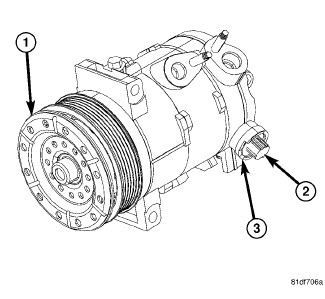

Fig 1: A/C Compressor, Control Valve & High Pressure Relief Valve

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Denso 6SEU16 A/C compressor shown in illustration. Valeo A/C compressor similar.

All 2.0L Diesel models are equipped with the Valeo A/C compressor.

2.4L models with front A/C only are equipped with the Denso 6SEU16 A/C compressor.

Both A/C compressors (1) are clutchless, variable displacement, swashplate type A/C compressors.

A label identifying the use of R-134a refrigerant and ND-8 PAG oil is located on the A/C compressor.
