Fixed Displacement A/C Compressor

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

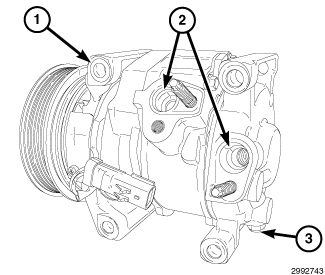

Fig 1: A/C Compressors, Discharge Ports & Integral High Pressure Relief Valve

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Denso 10SRE18 A/C compressor shown in illustration. Other compressors similar.

2.4L models with front and rear A/C are equipped with the Denso 10SR17 A/C compressor.

3.6L models with front A/C only are equipped with the Denso 10SRE18 A/C compressor.

3.6L models with front and rear A/C are equipped with the Denso 10SRE20 A/C compressor.

All of the above A/C compressors (1) are clutch operated, with individual suction and discharge ports (2) and integral high pressure relief valve (3).

A label identifying the use of R-134a refrigerant and ND-8 PAG oil is located on each A/C compressor.
