Center Outlets

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Take the proper precautions to protect the front face of the center bezel from cosmetic damage while performing this procedure.

Fig 1: Instrument Panel Air Outlet Assembly, Three Screws & Center Bezel
GC0147662Courtesy of CHRYSLER GROUP, LLC
  1. Remove the center bezel (3) from the instrument panel and place it on a workbench. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL .
  2. Remove the three screws (2) that secure the center instrument panel air outlet assembly (1) to the center bezel (3).

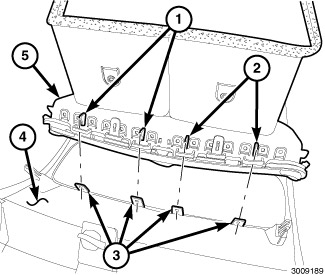

    Fig 2: Four Retaining Tabs, Instrument Panel Air Outlet Assembly & Center Bezel
    GC0147663Courtesy of CHRYSLER GROUP, LLC
  3. Using Trim Stick (special tool #C-4755, Trim Stick) or equivalent, carefully disengage the four retaining tabs (1 and 2) that secure the center instrument panel air outlet assembly (5) to the center bezel (4).
  4. Separate the center instrument panel air outlet assembly from the four center bezel tabs (3) by carefully pulling the outlet assembly straight off the bezel.
