Screen-Air Inlet

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

LHD model shown in illustration. RHD model similar.

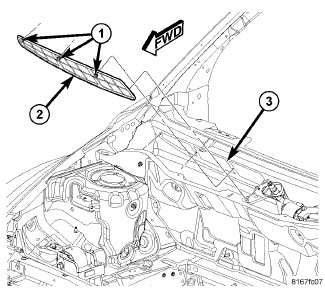

Fig 1: HVAC Housing Air Inlet Screen
GC0082722Courtesy of CHRYSLER GROUP, LLC
  1. Position the HVAC housing air inlet screen (2) to the cowl panel (3) and fully engage the three push-in retainers (1) that secure the screen to the panel.
  2. Install the cowl grille screen. Refer to COVER, COWL PANEL, INNER, INSTALLATION and/or COVER, COWL PANEL, OUTER, INSTALLATION .
