Transducer, A/C Pressure: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Review the warnings and cautions for this system before performing the procedure. Failure to follow these instructions may result in serious injury or death.

NOTE:

It is not necessary to discharge the refrigerant system to replace the A/C pressure transducer.

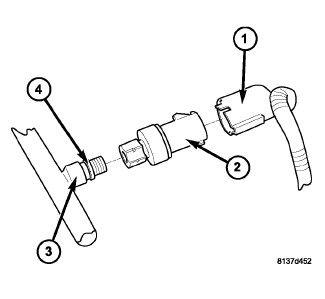

Fig 1: Removing/Installing A/C Pressure Transducer
GC0082715Courtesy of CHRYSLER GROUP, LLC
NOTE:

Typical A/C pressure transducer shown in illustration.

  1. Disconnect and isolate the negative battery cable.
  2. Disconnect the wire harness connector (1) from the A/C pressure transducer (2) located on the A/C liquid line (3) at the right front corner of the engine compartment.
  3. Remove the A/C pressure transducer from the A/C liquid line and remove and discard the O-ring seal (4).
