With Engine Timing Cover Installed

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Pin, Rack & Timing Chain Holder
GC0144154Courtesy of CHRYSLER GROUP, LLC
NOTE:

Graphic shows timing cover removed for clarity.

  1. Using (special tool #10200-3, Pin) (2), lift the pawl off of the rack (3).

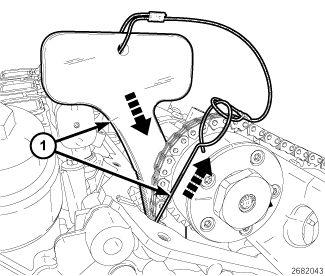

    Fig 2: Positioning Timing Chain Holder To Force Rack & Piston Back Into Tensioner Body
    GC0144152Courtesy of CHRYSLER GROUP, LLC
  2. While holding the pawl off of the rack, push (special tool #10200-1, Holder, Timing Chain, Left Side) (1) into place between the cylinder head and the cam chain guide to force the rack and piston back into the tensioner body. The holder must remain in place during service to keep the rack and piston in the retracted position.
