Manifold, Intake: Removal: Lower

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

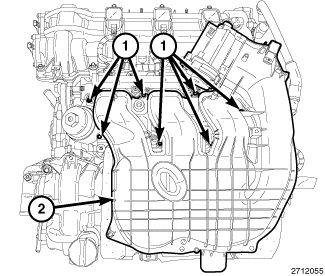

Fig 1: Upper Intake Manifold & Bolts

Courtesy of CHRYSLER GROUP, LLC

WARNING:

The fuel system is under constant pressure even with engine off. Before servicing the fuel rail, fuel system pressure must be released.

Release fuel system pressure. Refer to STANDARD PROCEDURE .
Disconnect and isolate the negative battery cable.
Remove the resonator and upper intake manifold (2). Refer to MANIFOLD, INTAKE, REMOVAL .

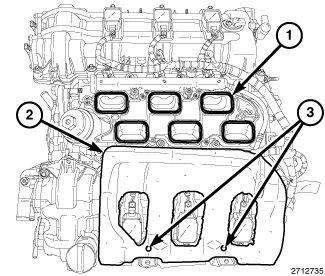

Fig 2: Intake Ports, Insulator & Alignment Posts
Courtesy of CHRYSLER GROUP, LLC
Remove the insulator (2) from the LH cylinder head cover.

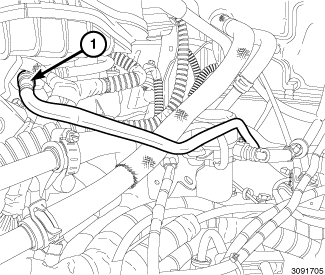

Fig 3: Fuel Supply Line
Courtesy of CHRYSLER GROUP, LLC
Disconnect the fuel supply hose (1) from the fuel rail inlet. Refer to FITTING, QUICK CONNECT .
Disconnect the fuel injector electrical connectors.

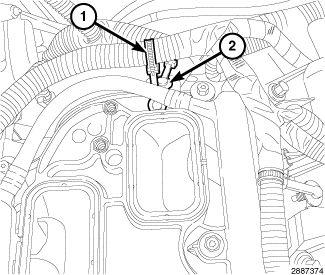

Fig 4: Injection/Ignition Harness Retainer & Main Wire Harness Retainer
Courtesy of CHRYSLER GROUP, LLC
Disengage the injection/ignition harness retainer (1) form the rear of the lower intake manifold.
Disengage the main wire harness retainer (2) form the rear of the lower intake manifold.

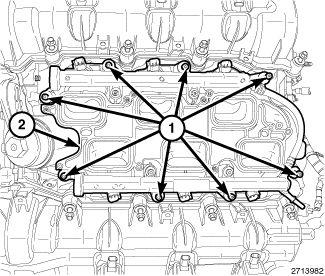

Fig 5: Lower Intake Manifold & Attaching Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the eight lower intake manifold attaching bolts (1).
Remove the lower intake manifold (2) with the fuel injectors and fuel rail.

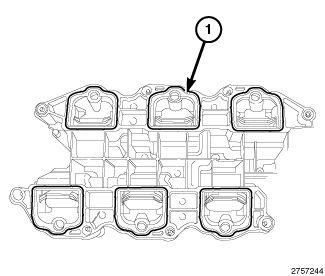

Fig 6: Lower Intake Manifold To Cylinder Head Seals
Courtesy of CHRYSLER GROUP, LLC
Remove and discard the six lower intake manifold to cylinder head seals (1).

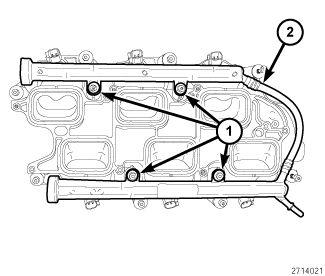

Fig 7: Fuel Rail & Retaining Bolts
Courtesy of CHRYSLER GROUP, LLC
If required, remove the fuel rail (2) and fuel injectors from the lower intake manifold. Refer to RAIL, FUEL, REMOVAL .
