Manifold, Intake: Installation: Lower

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Lower Intake Manifold To Cylinder Head Seals

Courtesy of CHRYSLER GROUP, LLC

Clean and inspect the sealing surfaces. Install new lower intake manifold to cylinder head seals (1).

Fig 2: Fuel Rail Bolt Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
If removed, install the fuel injectors and the fuel rail (1) to the lower intake manifold. Tighten the four bolts in the sequence shown in illustration to 7 N.m (62 in. lbs.). Refer to RAIL, FUEL, INSTALLATION .

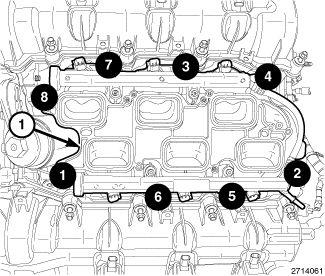

Fig 3: Intake Manifold Retaining Bolts Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Position the lower intake manifold (1) on the cylinder head surfaces.
Install the manifold attaching bolts and tighten in the sequence shown in illustration to 12 N.m (106 in. lbs.).

Fig 4: Injection/Ignition Harness Retainer & Main Wire Harness Retainer
Courtesy of CHRYSLER GROUP, LLC
Engage the main wire harness retainer (2) to the rear of the lower intake manifold.
Engage the injection/ignition harness retainer (1) to the rear of the lower intake manifold.
Connect the fuel injector electrical connectors.

Fig 5: Fuel Supply Line
Courtesy of CHRYSLER GROUP, LLC
Connect the fuel supply hose (1) to the fuel rail inlet. Refer to FITTING, QUICK CONNECT .

Fig 6: Intake Ports, Insulator & Alignment Posts
Courtesy of CHRYSLER GROUP, LLC
Install the insulator (2) to the two alignment posts (3) on top of the LH cylinder head cover.

Fig 7: Upper Intake Manifold Bolt Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Install the upper intake manifold (1), support brackets and resonator. Refer to MANIFOLD, INTAKE, INSTALLATION .
Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
Start the engine and check for leaks.
