Sensor, Oil Pressure: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper intake manifold and lower intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL .

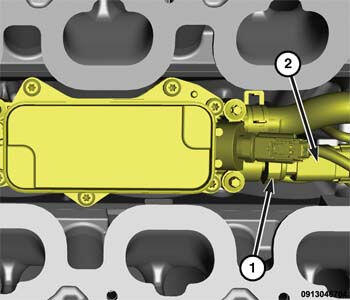

    Fig 1: Oil Pressure Sensor & Electrical Connector
    GC0161843Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the oil pressure sensor wire harness connector (2).
  3. Remove the oil pressure sensor (1) from the oil filter housing.
