Pan, Oil: Installation: Upper

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

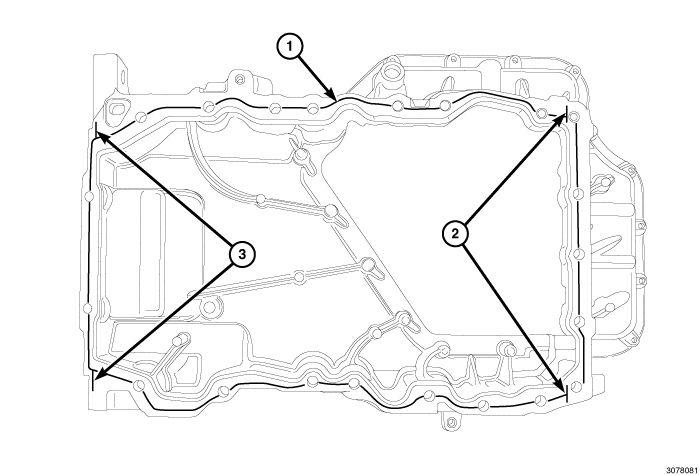

Fig 1: Locating Sealant On Upper Oil Pan
GC0147083Courtesy of CHRYSLER GROUP, LLC
CAUTION:

Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Threebond Engine RTV Sealant may result in engine fluid leakage.

CAUTION:

Clean the upper and lower oil pans, timing chain cover, rear seal retainer and engine block mating surfaces thoroughly with isopropyl alcohol in preparation for sealant application. All surfaces that seal with RTV must be oil and contamination free to ensure proper adhesion of the RTV to the mating surface to prevent leaks.

CAUTION:

Following the application of Mopar® Threebond Engine RTV Sealant to the gasket surfaces, the components must be assembled within 20 minutes and the attaching fasteners must be tightened to specification within 45 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.

  1. Clean the upper and lower oil pans, timing chain cover, rear seal retainer and engine block mating surfaces with isopropyl alcohol in preparation for sealant application. Refer to PAN, OIL, CLEANING .
  2. Apply a 2 to 3 mm wide bead of Mopar® Threebond Engine RTV Sealant to the upper oil pan as shown in illustration in the following locations:
    • Oil pan to engine block flange (1)
    • Two timing cover to engine block T-joints (2)
    • Two rear seal retainer to engine block T-joints (3)
    Fig 2: Oil Pan Mounting Bolts
    GC0147231Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    Make sure that the rear face of the oil pan is flush to the transmission bell housing before tightening any of the oil pan mounting bolts. A gap between the oil pan and the transmission could crack the oil pan or transmission casting.

  3. Install the oil pan to the engine block and flush to the transmission bell housing. Secure the oil pan to the engine block with nineteen M8 oil pan mounting bolts (1) finger tight.

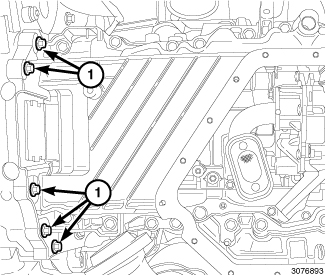

    Fig 3: Oil Pan To Transmission Bolts
    GC0147080Courtesy of CHRYSLER GROUP, LLC
  4. Install the five oil pan to transmission bolts (1) and tighten to 55 N.m (41 ft. lbs.).
    Fig 4: Oil Pan Mounting Bolts
    GC0147231Courtesy of CHRYSLER GROUP, LLC
  5. Tighten the nineteen previously installed M8 oil pan mounting bolts (3) to 25 N.m (18 ft. lbs.).

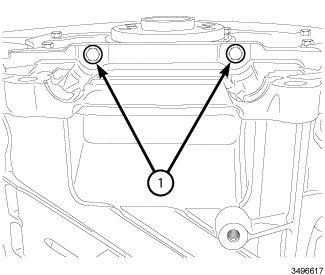

    Fig 5: Rear Oil Seal Retainer Flange Bolts
    GC0144907Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Shown in illustration with transmission removed for clarity.

  6. Install the two M6 bolts (1) to the rear oil seal retainer flange and tighten to 12 N.m (9 ft. lbs.).

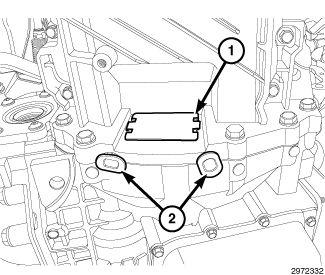

    Fig 6: Torque Converter Housing Dust Cover & Rubber Plugs
    GC0147034Courtesy of CHRYSLER GROUP, LLC
  7. Install the torque converter bolt access cover (1).
  8. Install the two rubber plugs (2) covering the rear oil seal retainer flange bolts.

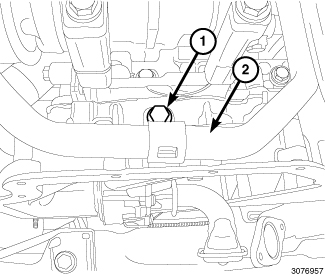

    Fig 7: Coolant Tube & Bolt
    GC0147081Courtesy of CHRYSLER GROUP, LLC
  9. Install the bolt (1) securing the coolant tube (2) to oil pan and tighten to 12 N.m (106 in. lbs.).
    Fig 8: Lower Oil Pan & Fasteners
    GC0147077Courtesy of CHRYSLER GROUP, LLC
  10. Install the lower oil pan. Refer to PAN, OIL, INSTALLATION .
    Fig 9: Aft Crossmember, Crossunder Pipe & Catalytic Converters
    GC0147025Courtesy of CHRYSLER GROUP, LLC
  11. Install the front fore-aft crossmember (1). Refer to CROSSMEMBER, FRONT FORE AND AFT, INSTALLATION .
  12. Install the crossunder pipe (2). Refer to PIPE, EXHAUST CROSSUNDER, INSTALLATION .

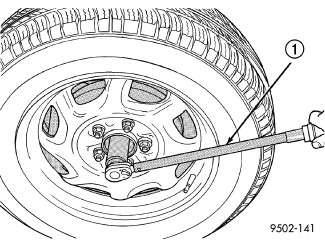

    Fig 10: Torquing Front Half Shaft To Hub Nut
    GC0124409Courtesy of CHRYSLER GROUP, LLC
  13. Install the right halfshaft assembly, steering knuckle, wheel and tire. Refer to INSTALLATION .
    Fig 11: Belly Pan
    GC0121546Courtesy of CHRYSLER GROUP, LLC
  14. Install the belly pan. Refer to FRAME AND BUMPERS .
  15. Lower the vehicle.
    Fig 12: Oil Level Indicator Tube & Bolt
    GC0147062Courtesy of CHRYSLER GROUP, LLC
  16. Install the oil level indicator (1) with bolt (2) tightened 12 N.m (106 in. lbs.).
  17. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to STANDARD PROCEDURE .
  18. Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
  19. Run the engine until it reaches normal operating temperature.
