Feeler Gauge

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

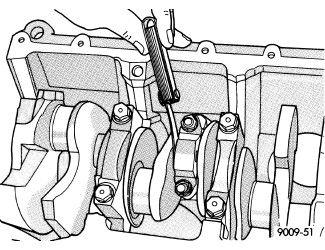

Fig 1: Measuring Gap Between Connecting Rod & Crankshaft Journal Flange
GC0104510Courtesy of CHRYSLER GROUP, LLC
  1. Slide a snug-fitting feeler gauge between the connecting rod and crankshaft journal flange. Compare the measured side clearance to the specification. Refer to ENGINE SPECIFICATIONS .
  2. Repeat this procedure for each connecting rod. Rotate the crankshaft for connecting rod accessibility.
