B259A-01-Front Left Door Handle Sense-General Electric Failure: Notes

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

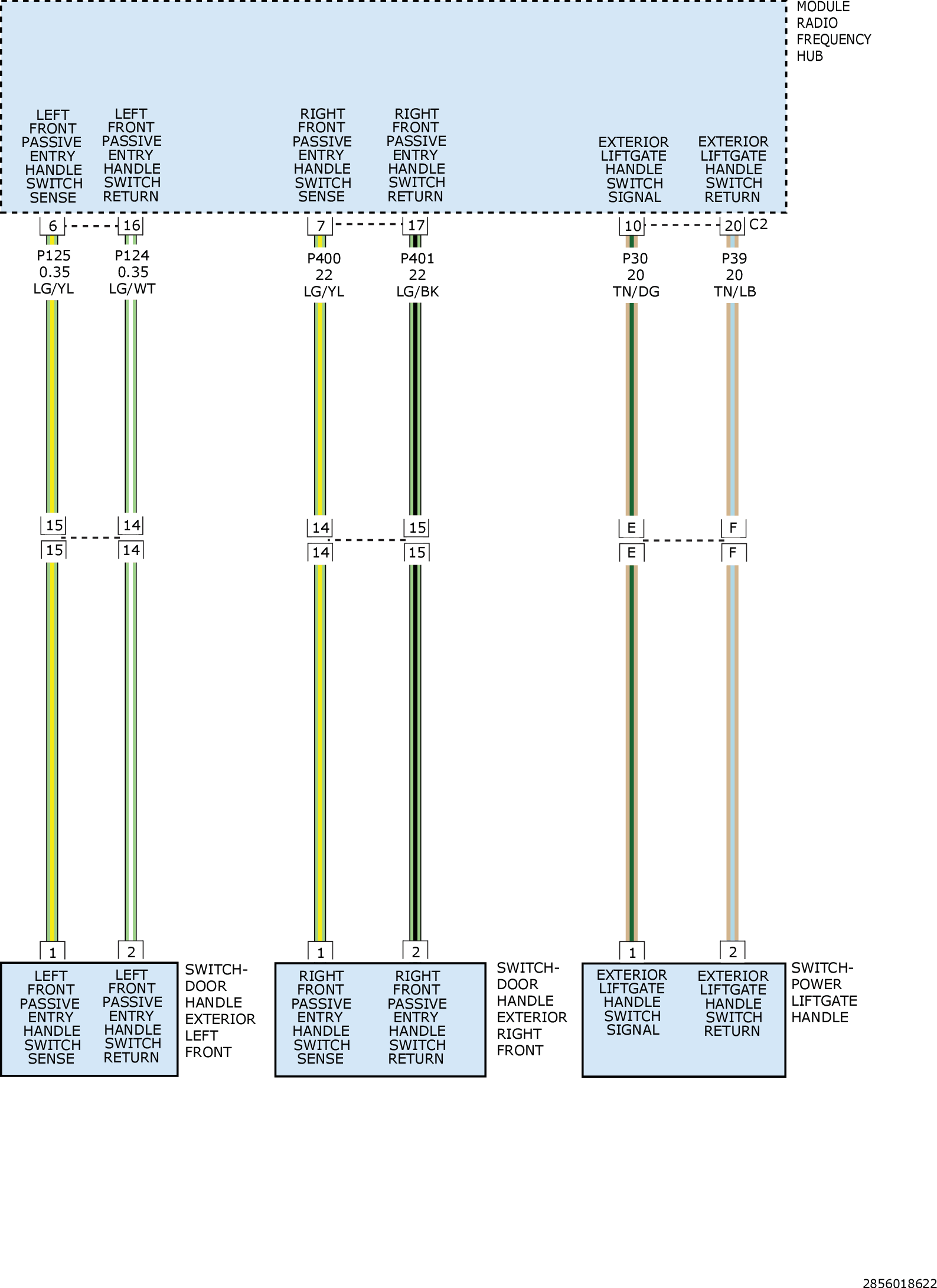

Fig 1: Door Handle Switch Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
