Tube, Fuel Tank Filler: Installation: Fwd

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Fuel Filler Tube AWD

Courtesy of CHRYSLER GROUP, LLC

1 - Fuel door housing assembly

2 - Fuel filler tube

Install fuel filler tube (2) to the fuel door housing assembly (1).

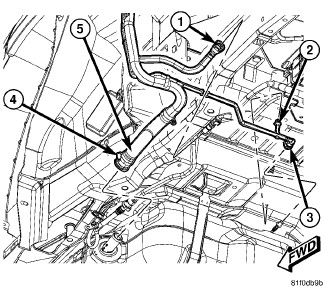

Fig 2: Fuel Fill Tube FWD

Courtesy of CHRYSLER GROUP, LLC

1 - Canister filter line quick connect fitting

2 - Christmas Tree Clip

3 - Recirculation line quick connect fitting

4 - Fuel filer tube hose clamp

5 - Fuel filer tube

Install fuel filler tube (5) to the fuel tank. Tighten hose clamp (4) to 3 N.m (27 in. lbs.).
Install the recirculation line quick connect fitting (3) to the fuel tank. Refer to FITTING, QUICK CONNECT .
Align and insert the Christmas tree clip (2).

Install the canister filter line quick connect fitting (1). Refer to FITTING, QUICK CONNECT .

Fig 3: Filler Tube Mounting Bracket Bolt

Courtesy of CHRYSLER GROUP, LLC

1 - Filler tube mounting bracket bolt

2 - Filler tube mounting bracket

3 - Filler tube mounting bracket body mount

Install filler tube mounting bracket (2) and bolt (1) to the body mount (3). Tighten to 12 N.m (97 in. lbs.).
Install the inner splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, INSTALLATION .
Install fuel cap.
Connect negative battery cable, tighten nut to 5 N.m (45 in. lbs.).
