Valve, Exhaust Gas RECIRCULATION (EGR), 2.8L Diesel: Installation: Installation

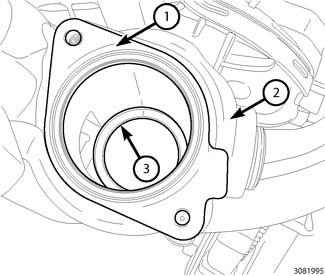

Fig 1: EGR Valve Gasket

Courtesy of CHRYSLER GROUP, LLC

1. Clean the gasket mating surfaces.
2. Position a new EGR valve gasket (1, 3) onto manifold (2).

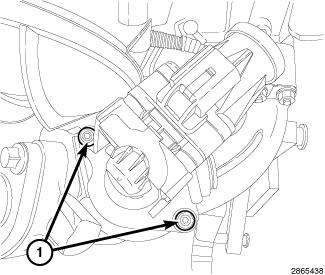

   Fig 2: EGR Valve & Bolts

   Courtesy of CHRYSLER GROUP, LLC
3. Install EGR valve. Tighten bolts (1) to 15 N.m (133 in. lbs.).

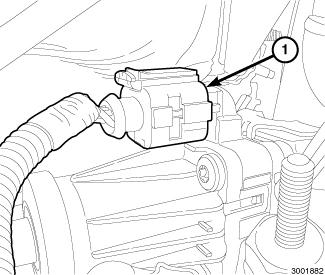

   Fig 3: EGR Valve Harness Connector

   Courtesy of CHRYSLER GROUP, LLC
4. Connect the EGR valve wire harness connector (1).
5. Install the coolant recovery bottle. Refer to BOTTLE, COOLANT RECOVERY, INSTALLATION .
6. Fill the cooling system. Refer to STANDARD PROCEDURE .
7. Install the front lower splash shield.
8. Connect the negative battery cable.
