Solenoid, Vacuum, Exhaust Gas RECIRCULATION (EGR) Bypass: Installation: Installation

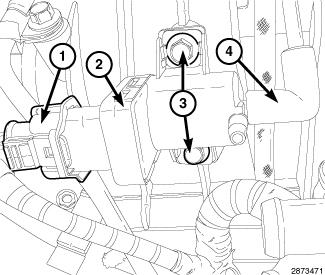

Fig 1: Harness Connector, Vacuum Lines, Bypass Vacuum Solenoid & Bolts

Courtesy of CHRYSLER GROUP, LLC

1. Install the EGR cooler bypass vacuum solenoid (2). Tighten bolts (3) 5 N.m (44 in. lbs.).
2. Connect harness connector (1).
3. Connect vacuum lines (4).
4. Install the EGR cooler. Refer to COOLER, EGR, INSTALLATION .
5. Connect the negative battery cable.
