P0335-Crankshaft Position Sensor Circuit: Notes

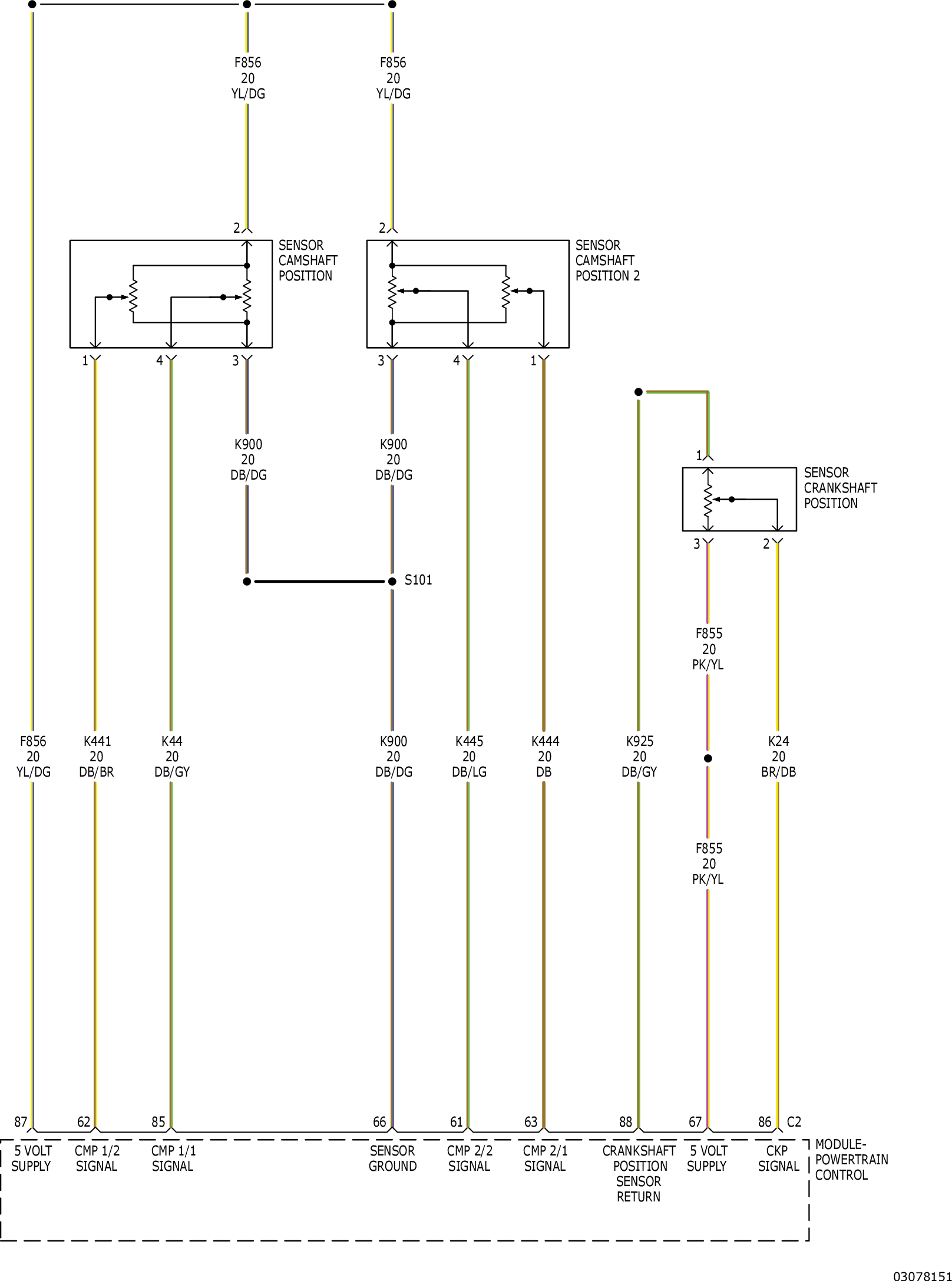

Fig 1: Crankshaft & Camshaft Position Sensors Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
